FUEL PUMP (for 3 Door) REASSEMBLY

Click here
Click here Click here
  1. Click here

    INSTALL FUEL PUMP FILTER


    1. Install the pump filter with a new clip.

  2. Click here

    INSTALL FUEL PUMP

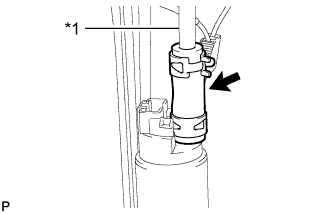

    1. A01DSQPE01

      Connect the fuel hose to the fuel pump and install the fuel pump.

    2. Connect the fuel hose to the main tube of the fuel pump.

      Table 1. Text in Illustration
      *1 Main Tube

    3. Install the rubber cushion to the fuel pump.

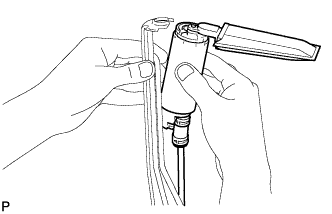

    4. A01DSVR

      Install the fuel pump by pushing the lower side of the fuel pump.

    5. Connect the lead wire connector to the fuel pump.
