FUEL PUMP (for 3 Door) DISASSEMBLY


  1. REMOVE FUEL PUMP

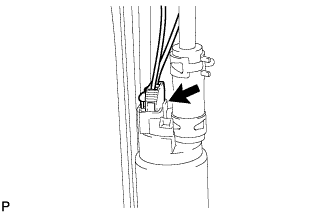

    1. A01DROA

      Disconnect the lead wire connector from the fuel pump.

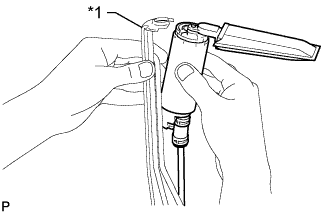

    2. A01DSVRE01
      Text in Illustration
      *1 Fuel Pump Bracket

      Pull out the lower side of the fuel pump from the fuel pump bracket.

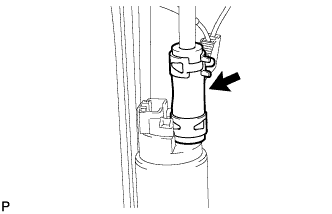

    3. A01DSQP

      Disconnect the fuel hose from the fuel pump and remove the fuel pump.

    4. Remove the rubber cushion from the fuel pump.

  2. REMOVE FUEL PUMP FILTER

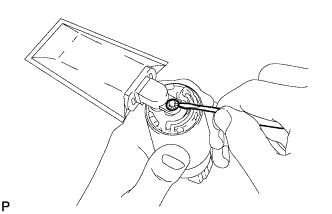

    1. A01DRZH

      Using a small screwdriver, pry out the clip.

    2. Pull out the pump filter.
