FUEL SUB TANK REMOVAL

Click here
Click here Click here
  1. Click here

    DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note:

    • After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Click here).

    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).

  2. Click here

    REMOVE NO. 2 FUEL TANK PROTECTOR


    1. A01DROF

      Remove the 5 bolts and No. 2 fuel tank protector.

  3. Click here

    DISCONNECT FUEL HOSE

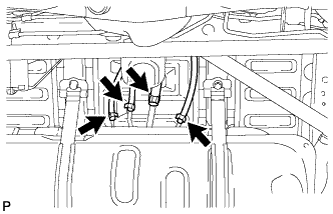

    1. A01DPUD

      Disconnect the fuel evaporation hose, fuel breather hose and 2 fuel hoses.

  4. Click here

    DISCONNECT FUEL TANK TO FILLER PIPE HOSE


    1. A01DP5P

      Disconnect the fuel tank to filler pipe hose from the filler pipe.

  5. Click here

    DISCONNECT FUEL TANK BREATHER HOSE


    1. A01DQ6Z

      Disconnect the fuel tank breather hose from the filler pipe.

  6. Click here

    REMOVE FUEL SUB TANK SUB-ASSEMBLY


    1. A01DOIC

      Disconnect the fuel sender gauge connector.

    2. Set a transmission jack underneath the fuel sub tank.

    3. A01DPFK

      Remove the 4 bolts and disconnect the 2 fuel tank bands.

    4. Remove the fuel sub tank.

  7. Click here

    REMOVE FUEL TANK VENT TUBE ASSEMBLY

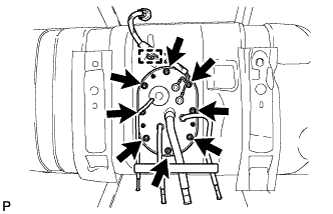

    1. A01DM0H

      Detach the wire harness clamp.

    2. Remove the 8 screws and fuel tank vent tube.

      Note:

      Be careful not to bend the arm of the fuel sender gauge.

    3. Remove the gasket from the fuel tank vent tube.

  8. Click here

    REMOVE FUEL TANK TO FILLER PIPE HOSE


    1. A01DLV3

      Remove the fuel tank to filler pipe hose from the fuel sub tank.

  9. Click here

    REMOVE FUEL TANK BREATHER HOSE


    1. A01DMXY

      Remove the fuel tank breather hose from the fuel sub tank.
