FUEL SUPPLY PUMP (w/o DPF) INSPECTION


  1. INSPECT FUEL SUPPLY PUMP

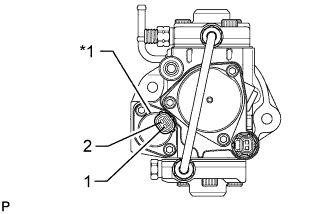

    1. A01DTQAE04
      Text in Illustration
      *1 Suction Control Valve

      Inspect the suction control valve.


      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance
        Tester Connection Condition Specified Condition
        1 - 2 20°C (68°F) 1.9 to 2.3 Ω

        If the result is not specified, replace the suction control valve assembly.
