FUEL PUMP (for Double Tank Type) DISASSEMBLY

Note

Do not disconnect the hoses indicated in the illustration.

A01DT69

  1. REMOVE FUEL SENDER GAUGE ASSEMBLY


    1. A01DT77

      Disconnect the fuel sender gauge connector.

    2. A01DTILE01

      Press down on the fuel sender gauge claw labeled A. Then slide the fuel sender gauge upward to remove it.

      Text in Illustration
      A01DQPB Press down
      A01DMKT Slide

  2. REMOVE NO. 1 FUEL SUB-TANK

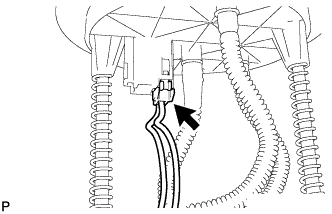

    1. A01DR2N

      Disconnect the fuel pump connector.

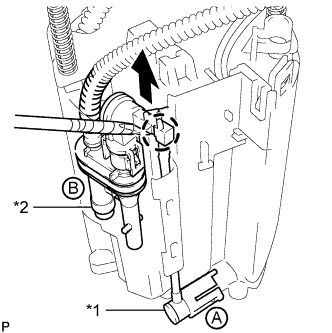

    2. A01DOZRE01
      Text in Illustration
      *1 Jet Pump A
      *2 Jet Pump B

      Disconnect the jet pump labeled A from the No. 1 fuel sub-tank.

    3. Disconnect the jet pump labeled B from the No. 1 fuel sub-tank.


      1. Using a small screwdriver, detach the claw from the No. 1 fuel sub-tank.

        Tech Tips

        Tape the screwdriver tip before use.

        Note

        Do not damage the No. 1 fuel sub-tank.

    4. A01DR2C

      Using a screwdriver, detach the 3 claws from the claw holes.

      Tech Tips

      Tape the screwdriver tip before use.

      Note

      Do not damage the No. 1 fuel sub-tank.

    5. A01DT34

      Using a screwdriver, detach the 3 claws from the claw holes.

      Tech Tips

      Tape the screwdriver tip before use.

      Note

      Do not damage the No. 1 fuel sub-tank.

  3. REMOVE FUEL PUMP


    1. A01DSJNE01
      Text in Illustration
      *1 Fuel Filter Case

      Using a screwdriver, detach the 5 claws from the claw holes and disconnect the fuel pump from the fuel filter case.

      Tech Tips

      Tape the screwdriver tip before use.

    2. Disconnect the fuel pump wire harness connector from the fuel pump to remove it.

    3. A01DOJKE01
      Text in Illustration
      *1 O-Ring
      *2 Fuel Pump Spacer

      Remove the O-ring and fuel pump spacer from the fuel pump.

  4. REMOVE FUEL MAIN VALVE ASSEMBLY

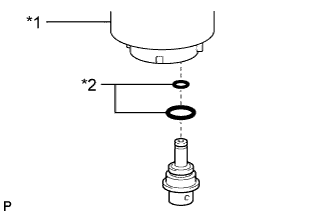

    1. A01DP1FE01
      Text in Illustration
      *1 Fuel Filter Case
      *2 O-Ring

      Remove the fuel main valve from the fuel filter case.

    2. Remove the 2 O-rings from the fuel main valve.
