FUEL SENDER GAUGE ASSEMBLY (for Single Tank Type) INSTALLATION


  1. INSTALL FUEL SENDER GAUGE ASSEMBLY

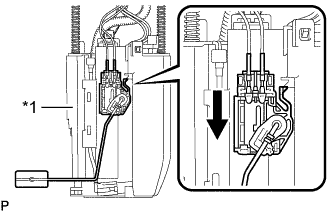

    1. A01DRZJE01
      Text in Illustration
      *1 Fuel Sub-Tank
      A01DQPB Slide

      Set the fuel sender gauge assembly on the fuel sub-tank. Then slide the fuel sender gauge assembly downward to install it.

    2. Connect the fuel sender gauge connector.

  2. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY


    1. Install the fuel suction with pump and gauge tube assembly Click here.
