DRIVE BELT REMOVAL


  1. REMOVE FAN AND GENERATOR V BELT


    1. A01DPCRE01

      Use the hexagonal part indicated by the arrow in the illustration to move the tensioner pulley downward and decrease the tension in the V belt. Then remove the V belt.

      Note

      When removing the V belt, do not use the bolt of the idle pulley.

      Tech Tips

      After removing the drive belt, move the tensioner upward to the maximum amount.

  2. REMOVE TENSIONER PULLEY

    Note

    Perform the following procedure when it is necessary to replace the tensioner pulley.

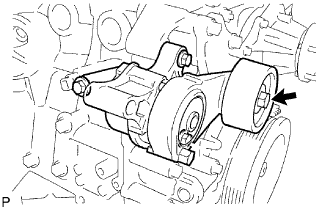

    1. A01DUO4E06

      Remove the bolt, dust seal and tensioner pulley.
