ENGINE ASSEMBLY (w/o DPF) COMPONENTS

ILLUSTRATION

A01DU8YE01

ILLUSTRATION

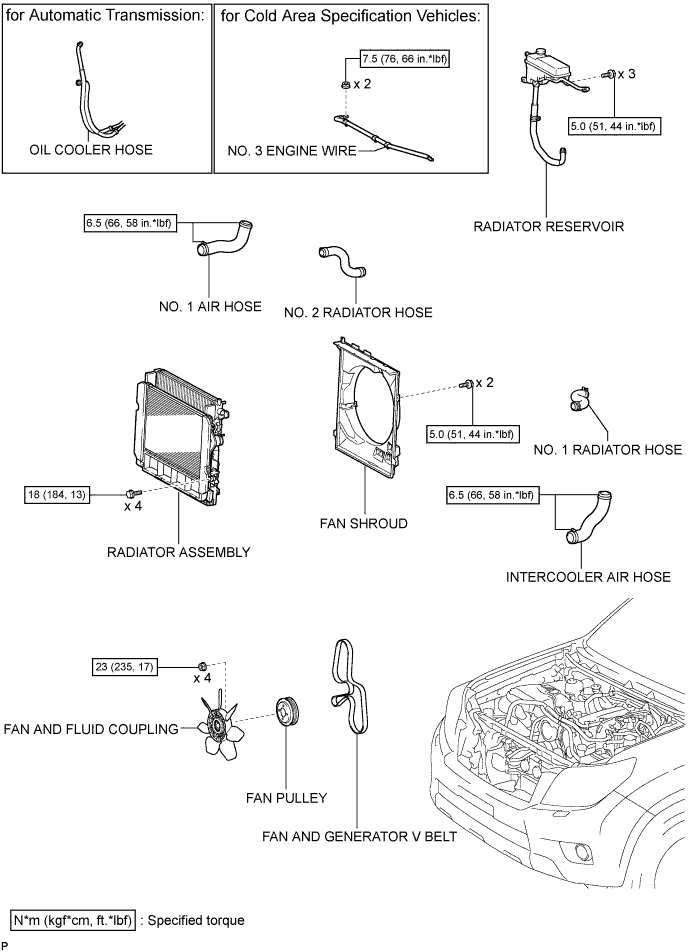

A01DUNME01

ILLUSTRATION

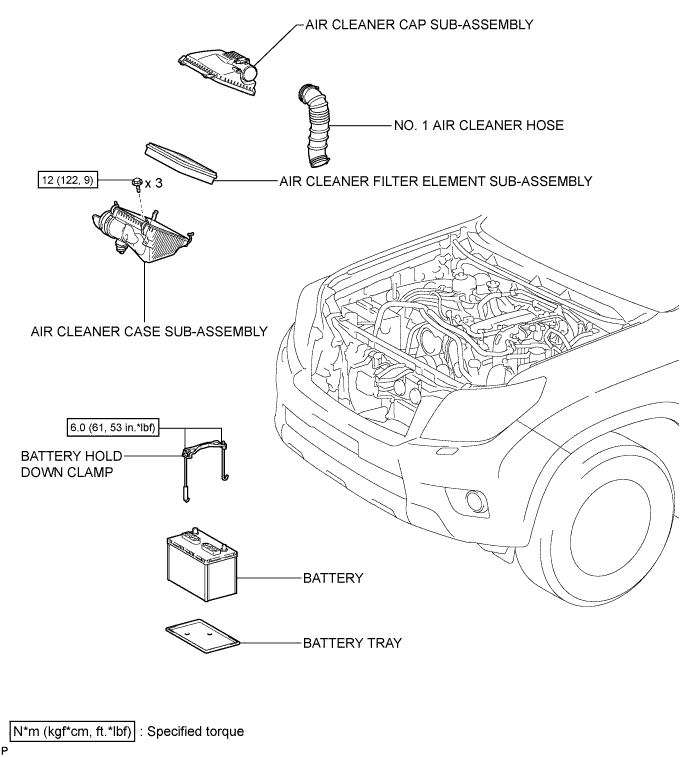

A01DNN2E01

ILLUSTRATION

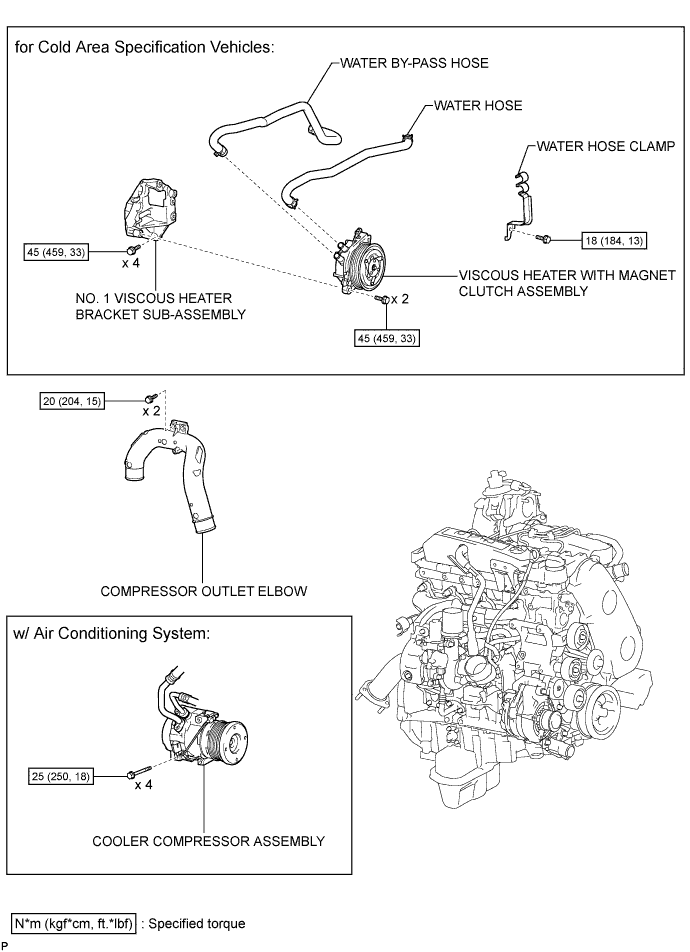

A01DRVVE01

ILLUSTRATION

A01DQCIE01

ILLUSTRATION

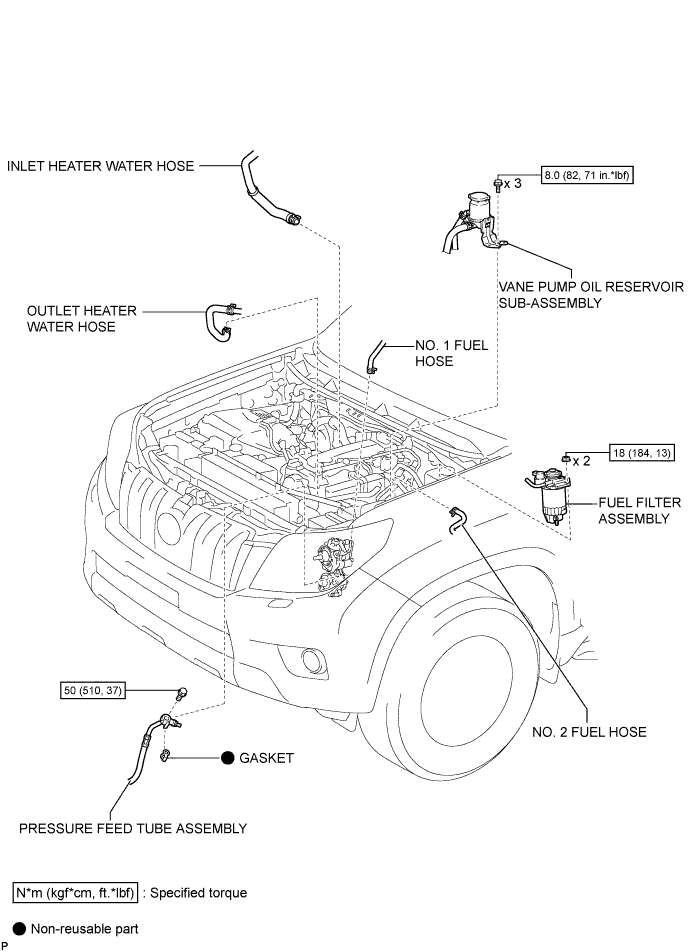

A01DSWZE01

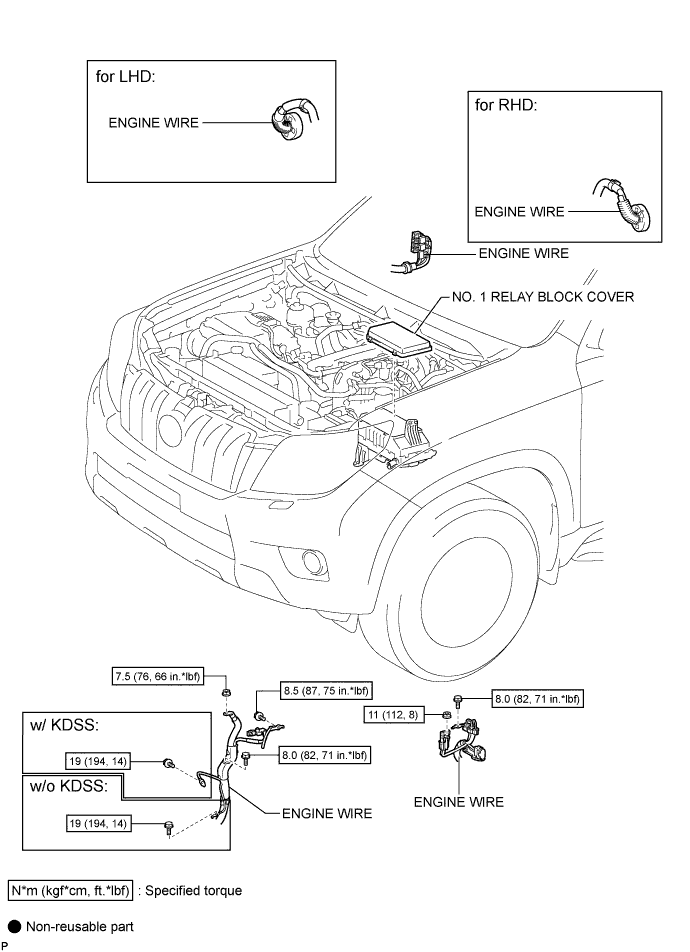

ILLUSTRATION

A01DSVWE01

ILLUSTRATION

A01DR07E01

ILLUSTRATION

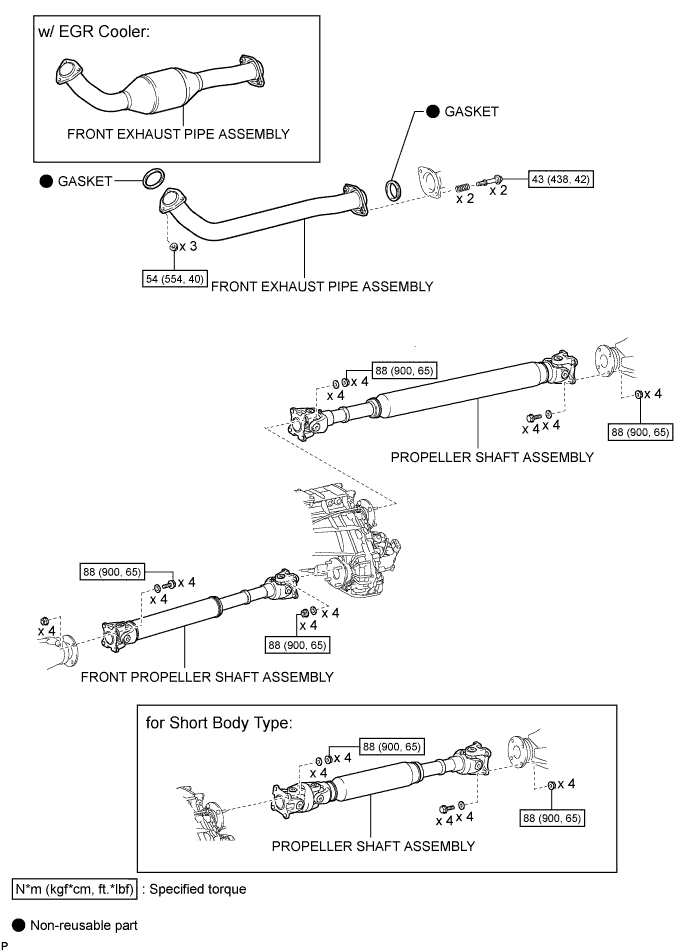

A01DNXGE01

ILLUSTRATION

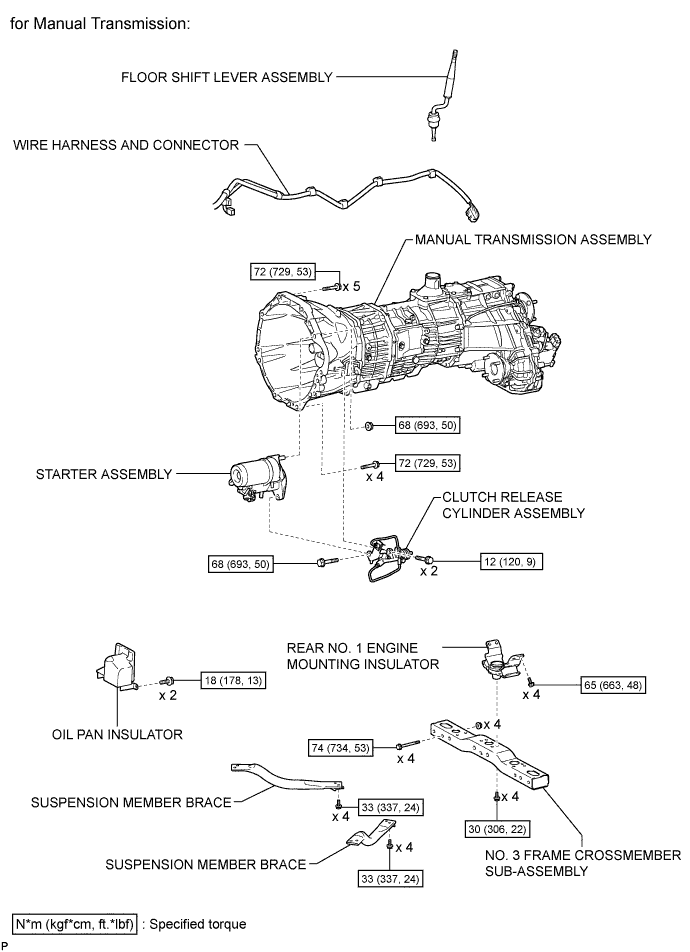

A01DU1JE01

ILLUSTRATION

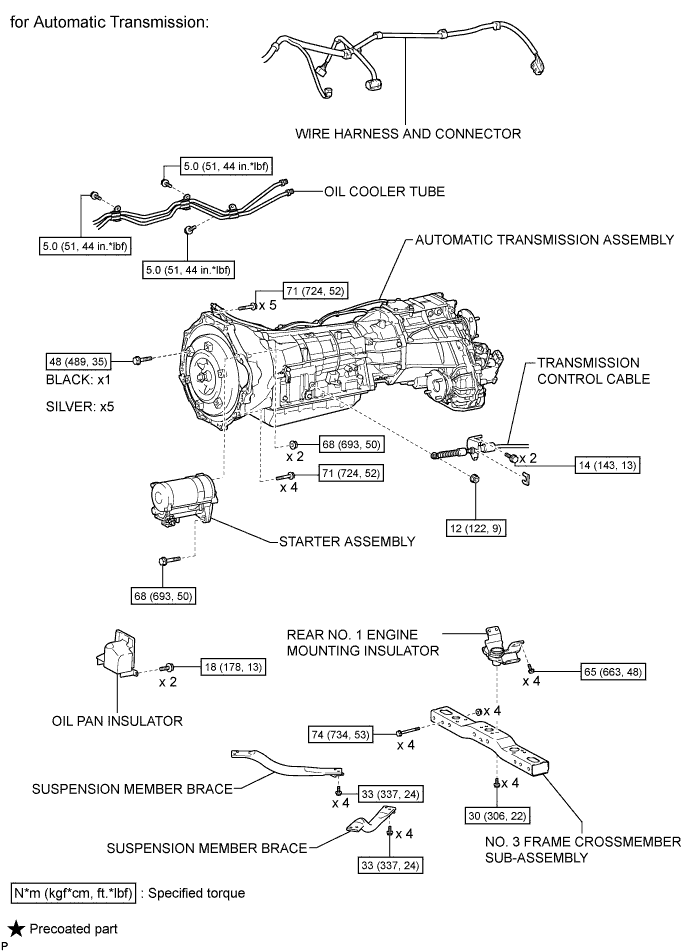

A01DQ1GE01

ILLUSTRATION

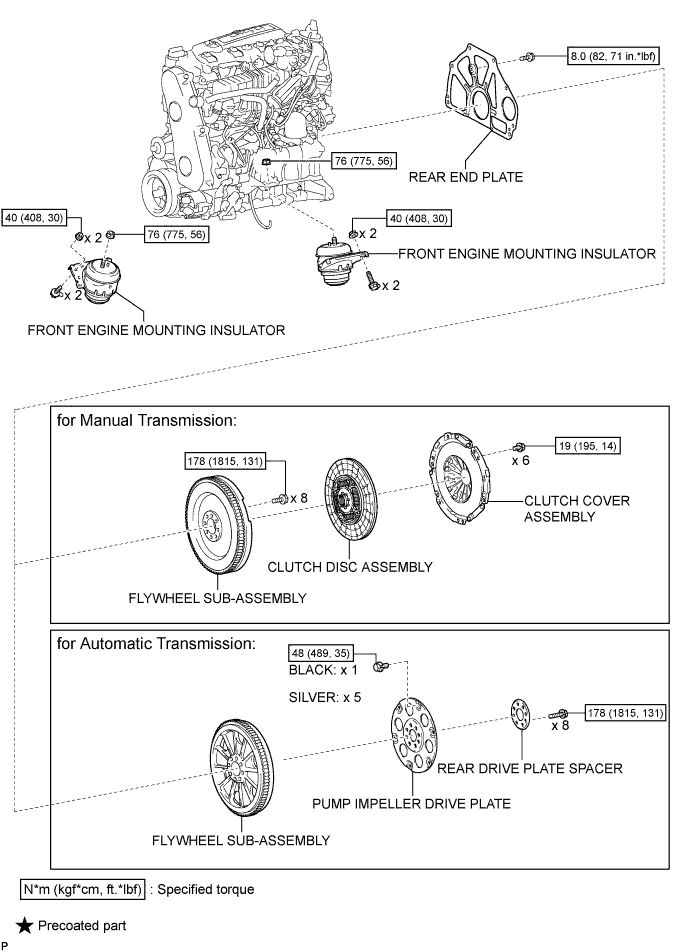

A01DR3IE01
