IGNITION COIL AND SPARK PLUG REMOVAL


  1. REMOVE AIR CLEANER AND HOSE


    1. A01DSM4

      Detach the 3 clamps and disconnect the mass air flow meter connector.

    2. A01DQ1U

      Detach the 4 clamps.

    3. Loosen the hose clamp and remove the air cleaner and hose.

  2. REMOVE INTAKE AIR CONNECTOR


    1. A01DRXO

      w/ Manifold absolute pressure sensor:


      1. Disconnect the air pressure sensor connector.

      2. Detach the 2 clamps.

      3. Disconnect the vacuum hose.

    2. A01DN0Y

      Disconnect the No. 2 ventilation hose.

    3. Detach the wire harness clamp.

    4. A01DTV4E01

      Disconnect the vacuum hose.

    5. A01DNAZ

      Loosen the hose clamp.

    6. Remove the 3 bolts and intake air connector.

  3. REMOVE IGNITION COIL ASSEMBLY


    1. A01DQQ0

      Disconnect the 4 ignition coil connectors.

    2. A01DRGN

      Remove the 4 bolts and 4 ignition coils.

  4. REMOVE SPARK PLUG

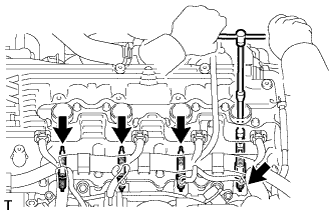

    1. A01DRNM

      Using a 16 mm spark plug wrench, remove the 4 spark plugs.
