ACCELERATOR PEDAL REMOVAL


  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

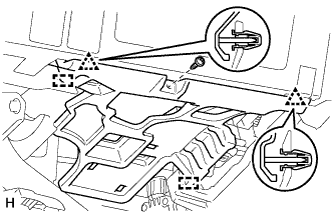

    1. A01DMAL

      Remove the screw and No. 1 instrument panel under cover.

    2. Detach the 2 clips and 2 guides and remove the No. 1 instrument panel under cover.

  2. REMOVE FRONT NO. 1 CONSOLE BOX INSERT

    A01DSBB

    1. Detach the 2 clips and guide and remove the front No. 1 console box insert.

  3. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY (for Automatic Transmission)

    Note

    This accelerator pedal does not require lubrication.

    Do not apply oil or other lubrication to the accelerator pedal sensor assembly.

    If applied, the accelerator pedal sensor assembly must be replaced.

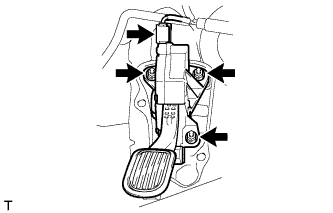

    1. A01DNM5

      Disconnect the accelerator pedal connector.

    2. Remove the 3 nuts and accelerator pedal.

      Note


      • Prevent physical shocks to the accelerator pedal.

      • Do not disassemble the accelerator pedal assembly.

  4. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY (for Manual Transmission)

    Note

    This accelerator pedal does not require lubrication.

    Do not apply oil or other lubrication to the accelerator pedal sensor assembly.

    If applied, the accelerator pedal sensor assembly must be replaced.


    1. A01DR6O

      Disconnect the accelerator pedal connector.

    2. Remove the 2 nuts and accelerator pedal.

      Note


      • Prevent physical shocks to the accelerator pedal.

      • Do not disassemble the accelerator pedal assembly.
