CAMSHAFT OIL CONTROL VALVE REMOVAL


  1. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

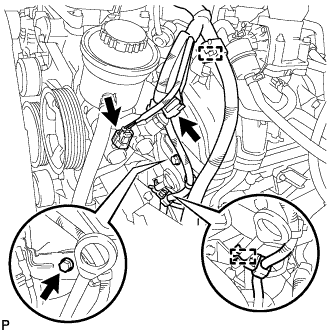

    1. A01DNZV

      Detach the 2 clamps and disconnect the 2 connectors.

    2. Remove the bolt and wiring harness clamp bracket.

    3. A01DPBG

      Disconnect the camshaft timing oil control valve connector.

    4. Remove the bolt and camshaft timing oil control valve.

    5. Remove the O-ring from the camshaft timing oil control valve.
