SFI SYSTEM, Diagnostic DTC:P2610

DTC Code DTC Name
P2610 ECM / PCM Internal Engine Off Timer Performance

DTC SUMMARY

DTC No. Monitoring Item Malfunction Detection Condition Trouble Area Detection Timing Detection Logic
P2610 Soak timer (built into ECM) There is an ECM internal malfunction (2 trip detection logic). ECM Engine running 2 trip

DESCRIPTION

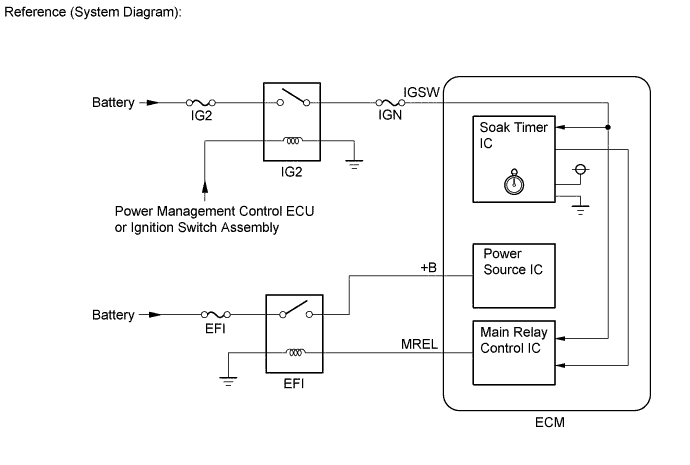

The soak timer operates after the ignition switch is turned off. When a certain amount of time has elapsed after turning the ignition switch off, the soak timer activates the ECM to perform malfunction checks which can only be performed after the engine is stopped. The soak timer is built into the ECM.

A01DMX2E01

MONITOR DESCRIPTION

While the engine is running, the ECM monitors the synchronization of the soak timer and CPU clock. If these two are not synchronized, the ECM interprets this as a malfunction, illuminates the MIL and stores the DTC.

INSPECTION PROCEDURE

Tech Tips


  • DTC P2610 is stored if an internal ECM problem is detected. Diagnostic procedures are not required. ECM replacement is necessary.

  • Read freeze frame data using the intelligent tester. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE


  1. REPLACE ECM


    1. Replace the ECM Click here.


    NEXT

  2. CHECK WHETHER DTC OUTPUT RECURS


    1. Connect the intelligent tester to the DLC3.

    2. Turn the ignition switch to ON.

    3. Turn the intelligent tester on.

    4. Clear the DTCs Click here.

    5. Start the engine and wait for 10 minutes or more.

    6. Enter the following menus: Powertrain / Engine and ECT / DTC / Pending.

    7. If no pending DTC is output, the repair has been successfully completed.


    NEXT

    END
