REFRIGERANT LINE REMOVAL


  1. RECOVER REFRIGERANT FROM AIR CONDITIONING SYSTEM (for SIA Made)


    1. Turn the A/C switch on.

    2. Operate the air conditioning with a set temperature of 25°C (77°F) and the blower at low for 10 minutes to circulate the refrigerant. This causes most of the compressor oil from the various components of the air conditioning system to collect in the air conditioning compressor.

    3. Turn the ignition switch off.

    4. Recover the refrigerant from the air conditioning system using a refrigerant recovery unit.

  2. REMOVE PIPING CLAMP (for SIA Made)

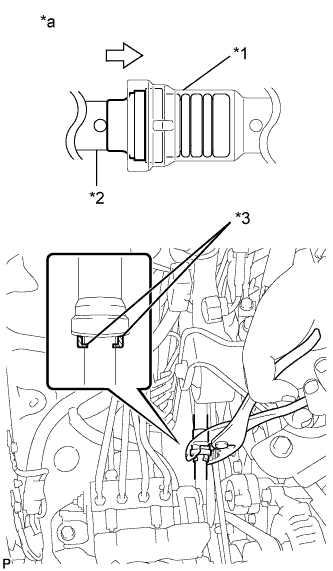

    1. A01HPM0E01
      Text in Illustration
      *1 Suction pipe Sub-assembly
      *2 Suction Hose Sub-assembly
      *3 Piping Clamp
      *a Press In

      While pressing the end of the suction hose sub-assembly into the end of the suction pipe sub-assembly, use pliers to squeeze together both sides of the piping clamp until it breaks apart.

      Note

      Make sure that fragments of the piping clamp do not enter the piping.

    2. Separate the suction hose sub-assembly.

      Note

      Clean off any dirt or water near the ends of the suction hose sub-assembly and suction tube sub-assembly.

    3. Remove the 2 O-rings from the suction hose sub-assembly.

      Note

      Wrap the open ends of the separated suction pipe sub-assembly and suction hose sub-assembly with vinyl tape to prevent dirt or water from entering.
