LIN COMMUNICATION SYSTEM, Diagnostic DTC:B2785

DTC Code DTC Name
B2785 Communication Malfunction between ECUs Connected by LIN

DESCRIPTION

The certification ECU (smart key ECU assembly) monitors communication between all the ECUs connected to the certification bus lines. When the certification ECU (smart key ECU assembly) detects errors in communication with all the ECUs connected to the certification bus lines at a set interval and 3 times in a row, DTC B2785 will be stored.

DTC No. DTC Detection Condition Trouble Area
B2785

  • Errors in LIN communication between ECUs or an open or short in communication lines

  • LIN communication from the certification ECU (smart key ECU assembly) detects errors in communication 3 times in a row.

  • Certification ECU (smart key ECU assembly)

  • Steering lock ECU (steering lock actuator assembly)

  • Wire harness or connector

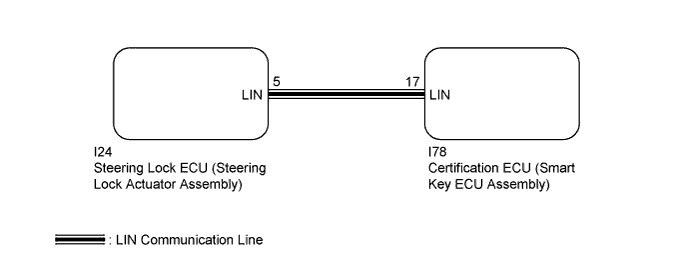

WIRING DIAGRAM

A01HPCME18

INSPECTION PROCEDURE

Note


  • If the certification ECU (smart key ECU assembly) is replaced, register the keys Click here.

  • If the steering lock ECU (steering lock actuator assembly) is replaced, register the ECU code Click here.

  • When using the Techstream to troubleshoot with the ignition switch off:

    Connect the Techstream to the DLC3, and turn the courtesy switch on and off at 1.5-second intervals until communication between the Techstream and vehicle begins.

PROCEDURE


  1. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - STEERING LOCK ECU)


    1. Disconnect the I24 steering lock ECU (steering lock actuator assembly) connector.

    2. Disconnect the I78 certification ECU (smart key ECU assembly) connector.

    3. Measure the resistance and voltage according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      I78-17 (LIN) - I24-5 (LIN) Always Below 1 Ω
      I78-17 (LIN) - Body ground Always 10 kΩ or higher
      Standard Voltage
      Tester Connection Condition Specified Condition
      I78-17 (LIN) - Body ground Always Below 1 V

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  2. CHECK DTC OUTPUT (STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU))


    1. Reconnect the I78 certification ECU (smart key ECU assembly) connector.

    2. Clear the DTC Click here.

    3. Recheck for DTCs.

      Result
      Result Proceed to
      DTC B2785 is output A
      DTC B2785 is not output B

    B

    REPLACE STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) Click here

    A

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) Click here
