POWER STEERING SYSTEM (for 2AR with Wireless Door Lock), Diagnostic DTC:C1511, C1512, C1513, C1514, C1517

DTC Code DTC Name
C1511 Torque Sensor Circuit Malfunction
C1512 Torque Sensor Circuit Malfunction
C1513 Torque Sensor Circuit Malfunction
C1514 Torque Sensor Power Supply Abnormal
C1517 Torque Hold Abnormal

DESCRIPTION

The torque sensor converts the rotation torque received from the steering wheel into electric signals and sends them to the power steering ECU assembly.

DTC No. DTC Detection Condition Trouble Area
C1511 Torque sensor malfunction

  • Electric power steering column sub-assembly (Torque sensor)

  • Power steering ECU assembly
C1512
C1513
C1514
C1517

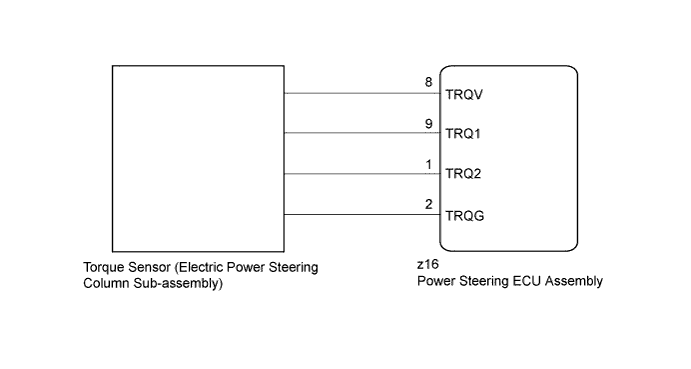

WIRING DIAGRAM

A01HQU3E04

INSPECTION PROCEDURE

Note


  • If the power steering ECU assembly has been replaced with a new one, perform assist map writing and torque sensor zero point calibration Click here.

  • If the electric power steering column sub-assembly has been replaced with a new one, perform torque sensor zero point calibration after performing the initialization of the torque sensor zero point value Click here.

PROCEDURE


  1. CHECK CONNECTOR CONNECTION CONDITION


    1. Check the connection condition of the torque sensor connector.

      OK
      Torque sensor connector is securely connected to the power steering ECU assembly.

    NG

    CONNECT CONNECTOR

    OK

  2. CHECK POWER STEERING ECU ASSEMBLY (TRQV VOLTAGE)

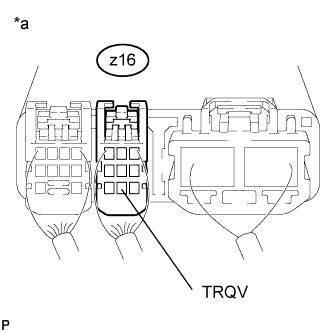

    1. A01HOGNE04
      Text in Illustration
      *a

      Component with harness connected

      (Power Steering ECU Assembly)

      Start the engine.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition Specified Condition
      z16-8 (TRQV) - Body ground Engine running 4.5 to 5.5 V

    NG

    REPLACE POWER STEERING ECU ASSEMBLY Click here

    OK

  3. CHECK POWER STEERING ECU ASSEMBLY (TRQ1, TRQ2 VOLTAGE)

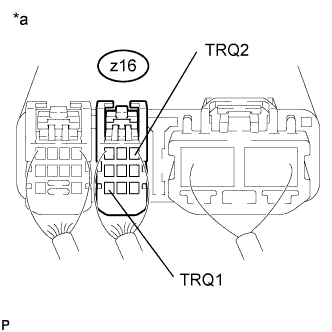

    1. A01HOGNE05
      Text in Illustration
      *a

      Component with harness connected

      (Power Steering ECU Assembly)

      Start the engine.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Condition (Steering Wheel Position) Specified Condition
      z16-9 (TRQ1) - Body ground

      Engine running

      (Center position)

      		 2.3 to 2.7 V
      z16-1 (TRQ2) - Body ground

      Engine running

      (Center position)

      		 2.3 to 2.7 V
      z16-9 (TRQ1) - Body ground

      Engine running

      (Turned to right)

      		 2.5 to 3.8 V
      z16-1 (TRQ2) - Body ground

      Engine running

      (Turned to right)

      		 1.2 to 2.5 V
      z16-9 (TRQ1) - Body ground

      Engine running

      (Turned to left)

      		 1.2 to 2.5 V
      z16-1 (TRQ2) - Body ground

      Engine running

      (Turned to left)

      		 2.5 to 3.8 V

    3. Under each condition, measure the voltage at terminals TRQ1 and TRQ2, and calculate the sum.

      Standard Voltage
      Inspection Item Condition (Steering Wheel Position) Specified Condition
      Sum of voltage between z16-9 (TRQ1) and body ground and voltage between z16-1 (TRQ2) and body ground

      Engine running

      Steering wheel not being turned (without load)

      		 Between 4.75 V and 5.25 V

      Engine running

      Steering wheel being turned to the right with vehicle stopped

      Engine running

      Steering wheel being turned to the left with vehicle stopped

    NG

    REPLACE ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY Click here

    OK

    REPLACE POWER STEERING ECU ASSEMBLY Click here
