FRONT BRAKE FLEXIBLE HOSE REMOVAL

Note

If the left and right hoses are disconnected at the same time, be sure to place a mark on each hose to indicate its installation position.

Tech Tips


  • Use the same procedure for the LH side and RH side.

  • The following procedure is for the LH side.


  1. REMOVE FRONT WHEEL

  2. DRAIN BRAKE FLUID

    Note

    If brake fluid leaks onto any painted surface, immediately wash it off.

  3. REMOVE FRONT FLEXIBLE HOSE


    1. A01HPBK

      Remove the union bolt and gasket, and separate the front flexible hose from the front disc brake cylinder assembly.

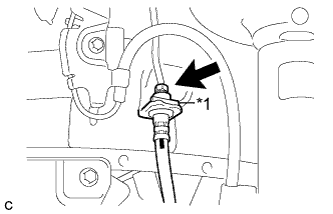

    2. A01HOJ6E01
      Text in Illustration
      *1 Clip

      Using a union nut wrench, disconnect the brake line while holding the front flexible hose with a wrench.

      Note


      • Do not bend or damage the brake line.

      • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting points.

    3. Remove the clip.

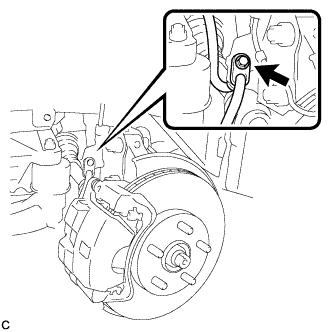

    4. A01HPI2

      Remove the bolt and front flexible hose from the front shock absorber assembly.
