MANIFOLD ABSOLUTE PRESSURE SENSOR (w/o DPF) REMOVAL


  1. REMOVE MANIFOLD ABSOLUTE PRESSURE SENSOR

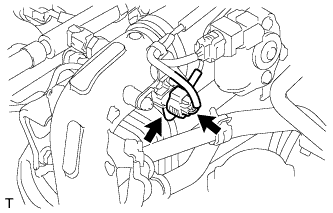

    1. A01DPHT

      Disconnect the manifold absolute pressure sensor connector and vacuum hose.

    2. Disconnect the vacuum hose from the manifold absolute pressure sensor bracket.

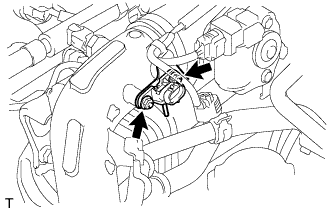

    3. A01DRSX

      Remove the 2 nuts, manifold absolute pressure sensor and manifold absolute pressure sensor bracket.
