ECM REMOVAL


  1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY


    1. Remove the glove compartment door Click here.

  2. REMOVE ECM

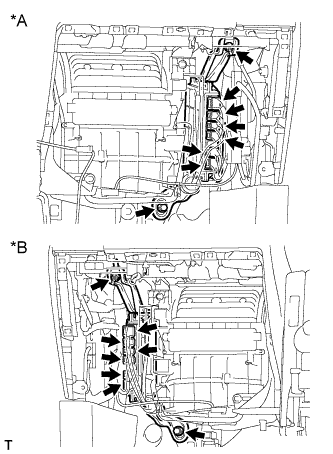

    1. A01DM1CE01
      Text in Illustration
      *A for LHD
      *B for RHD

      Disconnect the 6 connectors.

    2. Remove the bolt, nut and ECM.

  3. REMOVE NO. 1 ECM BRACKET

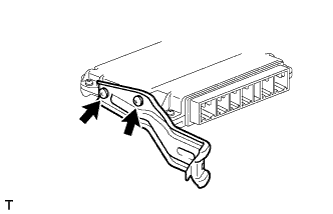

    1. A01DP3Z

      Remove the 2 screws and No. 1 ECM bracket.

  4. REMOVE NO. 2 ECM BRACKET

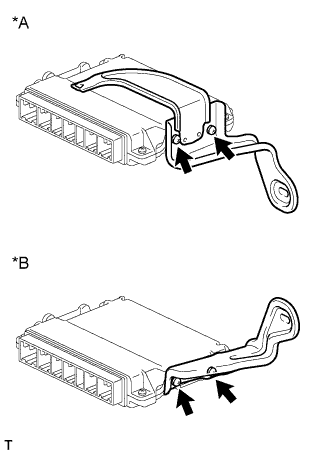

    1. A01DO9VE01
      Text in Illustration
      *A for LHD
      *B for RHD

      Remove the 2 screws and No. 2 ECM bracket.
