ENGINE COOLANT TEMPERATURE SENSOR REMOVAL


  1. REMOVE INTAKE MANIFOLD


    1. Remove the intake manifold Click here.

  2. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

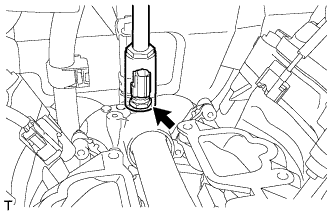

    A01DR87

    1. Disconnect the sensor connector.

    2. Using a 19 mm deep socket wrench, remove the sensor.

    3. Remove the gasket from the sensor.
