CRANKSHAFT POSITION SENSOR REMOVAL


  1. REMOVE GENERATOR ASSEMBLY


    1. Remove the generator Click here.

  2. REMOVE COOLER COMPRESSOR ASSEMBLY (w/ Air Conditioning System)


    1. Remove the cooler compressor Click here.

  3. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY


    1. Remove the 4 bolts.

    2. A01DQWQ

      Unhook the engine under cover from the vehicle body as shown in the illustration.

  4. REMOVE IDLER PULLEY ASSEMBLY (w/o Air Conditioning System)


    1. Remove the 3 bolts and idler pulley.

  5. REMOVE CRANKSHAFT POSITION SENSOR

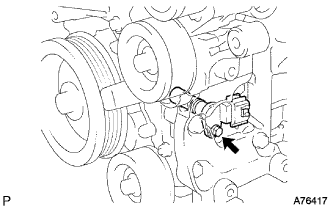

    1. A01DN04

      Disconnect the sensor connector.

    2. Remove the bolt and sensor.
