CAMSHAFT POSITION SENSOR REMOVAL


  1. REMOVE V-BANK COVER


    1. A01DQBNE01
      Text in Illustration
      *1 Pin
      *2 Hook

      Raise the front of the V-bank cover to detach the 2 pins. Then remove the 2 V-bank cover hooks from the bracket, and remove the V-bank cover.

  2. REMOVE NO. 1 AIR CLEANER HOSE


    1. A01DRZ1

      Disconnect the ventilation hose and vacuum hose.

    2. Detach the wire harness clamp.

    3. Remove the bolt and loosen the 2 hose clamps.

    4. Remove the No. 1 air cleaner hose.

  3. REMOVE VVT SENSOR (for Intake Side of Bank 1)

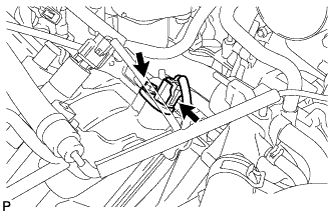

    1. A01DREK

      Disconnect the sensor connector.

    2. Remove the bolt and sensor.

  4. REMOVE VVT SENSOR (for Exhaust Side of Bank 1)

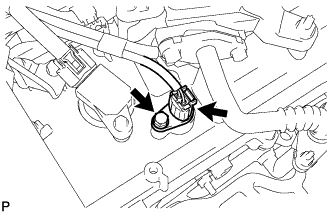

    1. A01DT8G

      Disconnect the sensor connector.

    2. Remove the bolt and sensor.

  5. REMOVE VVT SENSOR (for Intake Side of Bank 2)

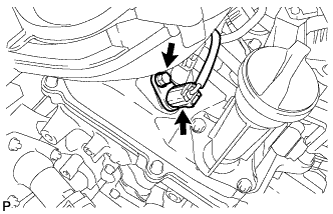

    1. A01DP21

      Disconnect the sensor connector.

    2. Remove the bolt and sensor.

  6. REMOVE VVT SENSOR (for Exhaust Side of Bank 2)

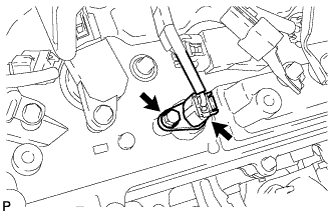

    1. A01DNLC

      Disconnect the sensor connector.

    2. Remove the bolt and sensor.
