MASS AIR FLOW METER INSPECTION

INSPECT MASS AIR FLOW METER

1.

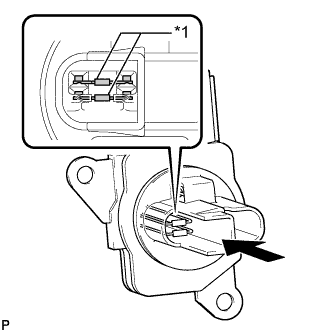

   Text in Illustration

   *1	Platinum Hot Wire (Heater)

   Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter in the areas shown in the illustration.

   OK
   There is no foreign matter.

   If the result is not as specified, replace the mass air flow meter.
