DIESEL THROTTLE BODY REMOVAL


  1. REMOVE RESONATOR WITH AIR CLEANER CAP SUB-ASSEMBLY


    1. A01DTKZ

      Disconnect the sensor connector.

    2. Detach the wire harness clamp.

    3. Loosen the hose clamp and remove the resonator with air cleaner cap.

    4. A01DNS4

      Detach the 4 hook clamps, and then remove the air cleaner cap and resonator with air cleaner cap.

  2. REMOVE INTAKE PIPE


    1. A01DO3X

      Remove the 2 bolts.

    2. Loosen the hose clamp and remove the intake pipe.

  3. REMOVE INTAKE FLANGE

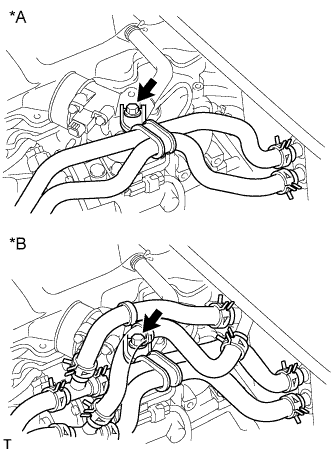

    1. A01DQQGE01
      Text in Illustration
      *A w/o Rear Heater
      *B w/ Rear Heater

      Remove the bolt and disconnect the heater water hose.

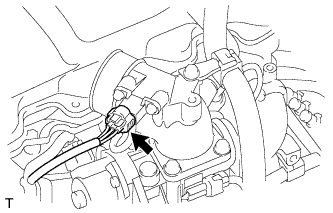

    2. A01DPIS

      Disconnect the manifold absolute pressure sensor connector.

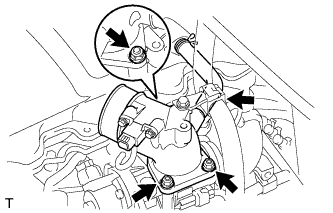

    3. A01DRZE

      Disconnect the PCV hose.

    4. Remove the 3 nuts, intake flange and gasket.

  4. REMOVE DIESEL THROTTLE BODY

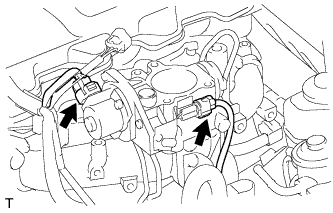

    1. A01DQ8V

      Disconnect the throttle open switch connector.

    2. Disconnect the throttle control motor connector.

    3. Remove the diesel throttle body and gasket.
