ECD SYSTEM, Diagnostic DTC:35

DTC Code DTC Name
35 Manifold Absolute Pressure / Barometric Pressure Circuit Malfunction

DESCRIPTION

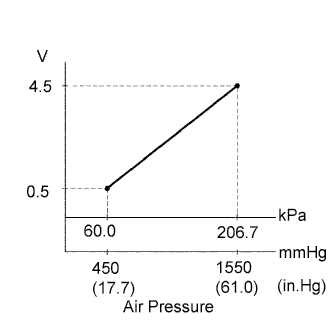

The manifold absolute pressure sensor generates voltage according to the pressure value as shown in the illustration. The voltage of the manifold absolute pressure sensor is one of the factors used to determine the injection volume and injection timing.

A01DT4BE12
DTC No. DTC Detection Condition Trouble Area
35 Open or short in the manifold absolute pressure sensor circuit for 2 sec. or more.

  • Open or short in manifold absolute pressure sensor circuit

  • Manifold absolute pressure sensor

  • ECM

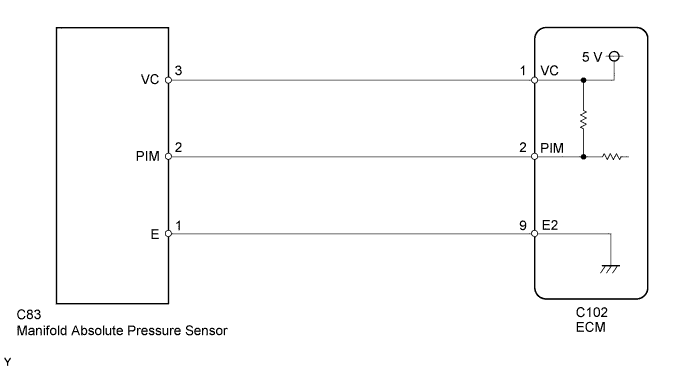

WIRING DIAGRAM

A01DQNCE01

INSPECTION PROCEDURE

Tech Tips


  • If DTCs related to different systems that have terminal E2 as the ground terminal are stored simultaneously, there may be an open circuit between terminal E2 and body ground.

  • Read freeze frame data using the intelligent tester. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, and other data from the time the malfunction occurred.

When using intelligent tester:

PROCEDURE


  1. READ VALUE USING INTELLIGENT TESTER (INTAKE MANIFOLD PRESSURE)


    1. Connect the intelligent tester to the DLC3.

    2. Turn the ignition switch to ON.

    3. Enter the following menus: Powertrain / Engine and ECT / Data List / PIM.

      OK
      Value is same as atmospheric pressure.

      Tech Tips

      When DTC 35 is stored, the type of malfunction can be determined based on the manifold absolute pressure (see below).

      Intake Manifold Pressure (kPa) Malfunction
      Approx. 0

      • Short in PIM circuit
      192 or more

      • Open or short in VC circuit

      • Open in PIM circuit

      • Open in E2 circuit

    NG

    INSPECT MANIFOLD ABSOLUTE PRESSURE SENSOR Click here

    OK

  2. CHECK CONNECTION OF VACUUM HOSE


    1. Check that the vacuum hose is securely connected and that there are no leaks from the connection.

      OK
      The vacuum hose is securely connected and there are no leaks from the connection.

    NG

    REPAIR OR REPLACE VACUUM HOSE

    OK

    CHECK FOR INTERMITTENT PROBLEMS Click here

  3. INSPECT MANIFOLD ABSOLUTE PRESSURE SENSOR


    1. Inspect the manifold absolute pressure sensor Click here.


    NG

    REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR Click here

    OK

  4. CHECK ECM (VC VOLTAGE)

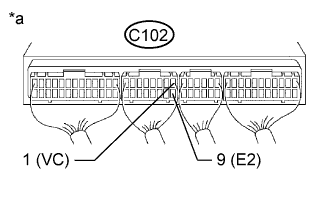

    1. A01DUBVE92
      Text in Illustration
      *a

      Component with harness connected

      (ECM)

      Turn the ignition switch to ON.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      C102-1 (VC) - C102-9 (E2) Ignition switch ON 4.75 to 5.25 V

    NG

    REPLACE ECM Click here

    OK

  5. CHECK ECM (PIM VOLTAGE)

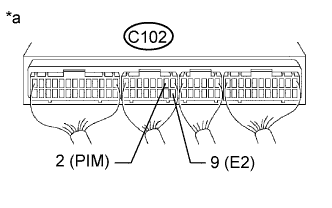

    1. A01DUBVE93
      Text in Illustration
      *a

      Component with harness connected

      (ECM)

      Turn the ignition switch to ON.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      C102-2 (PIM) - C102-9 (E2) Ignition switch ON 1.0 to 2.2 V

    OK

    REPLACE ECM Click here

    NG

  6. CHECK HARNESS AND CONNECTOR (ECM - MANIFOLD ABSOLUTE PRESSURE SENSOR)


    1. Disconnect the manifold absolute pressure sensor connector.

    2. Disconnect the ECM connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)
      Tester Connection Condition Specified Condition
      C83-3 (VC) - C102-1 (VC) Always Below 1 Ω
      C83-2 (PIM) - C102-2 (PIM) Always Below 1 Ω
      C83-1 (E) - C102-9 (E2) Always Below 1 Ω
      Standard Resistance (Check for Short)
      Tester Connection Condition Specified Condition
      C83-3 (VC) or C102-1 (VC) - Body ground Always 10 kΩ or higher
      C83-2 (PIM) or C102-2 (PIM) - Body ground Always 10 kΩ or higher
      C83-1 (E) or C102-9 (E2) - Body ground Always 10 kΩ or higher

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

    CHECK FOR INTERMITTENT PROBLEMS Click here

When not using intelligent tester:

PROCEDURE


  1. INSPECT MANIFOLD ABSOLUTE PRESSURE SENSOR


    1. Inspect the manifold absolute pressure sensor Click here.


    NG

    REPLACE MANIFOLD ABSOLUTE PRESSURE SENSOR Click here

    OK

  2. CHECK ECM (VC VOLTAGE)


    1. A01DUBVE92
      Text in Illustration
      *a

      Component with harness connected

      (ECM)

      Turn the ignition switch to ON.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      C102-1 (VC) - C102-9 (E2) Ignition switch ON 4.75 to 5.25 V

    NG

    REPLACE ECM Click here

    OK

  3. CHECK ECM (PIM VOLTAGE)


    1. A01DUBVE93
      Text in Illustration
      *a

      Component with harness connected

      (ECM)

      Turn the ignition switch to ON.

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      Tester Connection Switch Condition Specified Condition
      C102-2 (PIM) - C102-9 (E2) Ignition switch ON 1.0 to 2.2 V

    OK

    REPLACE ECM Click here

    NG

  4. CHECK HARNESS AND CONNECTOR (ECM - MANIFOLD ABSOLUTE PRESSURE SENSOR)


    1. Disconnect the manifold absolute pressure sensor connector.

    2. Disconnect the ECM connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for Open)
      Tester Connection Condition Specified Condition
      C83-3 (VC) - C102-1 (VC) Always Below 1 Ω
      C83-2 (PIM) - C102-2 (PIM) Always Below 1 Ω
      C83-1 (E) - C102-9 (E2) Always Below 1 Ω
      Standard Resistance (Check for Short)
      Tester Connection Condition Specified Condition
      C83-3 (VC) or C102-1 (VC) - Body ground Always 10 kΩ or higher
      C83-2 (PIM) or C102-2 (PIM) - Body ground Always 10 kΩ or higher
      C83-1 (E) or C102-9 (E2) - Body ground Always 10 kΩ or higher

    4. Reconnect the manifold absolute pressure sensor connector.

    5. Reconnect the ECM connector.


    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

    CHECK FOR INTERMITTENT PROBLEMS Click here
