POWER WINDOW REGULATOR MOTOR (for Rear Door) INSPECTION


  1. INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

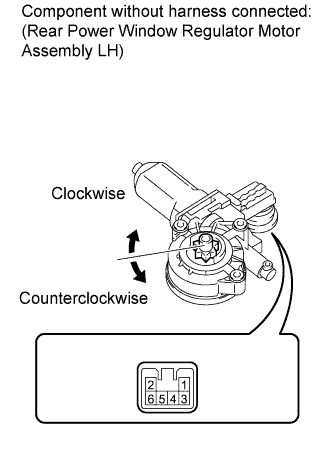

    1. A015YSXE11

      Apply battery voltage to connector terminals 1 and 2.

      Note

      Do not apply battery voltage to any terminals except terminals 1 and 2.

    2. Check that the motor gear rotates smoothly as follows.

      OK
      Measurement Condition Specified Condition

      Battery positive (+) → 1

      Battery negative (-) → 2

      		 Motor gear rotates clockwise

      Battery positive (+) → 2

      Battery negative (-) → 1

      		 Motor gear rotates counterclockwise

      If the result is not as specified, replace the power window regulator motor assembly.

  2. INSPECT REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

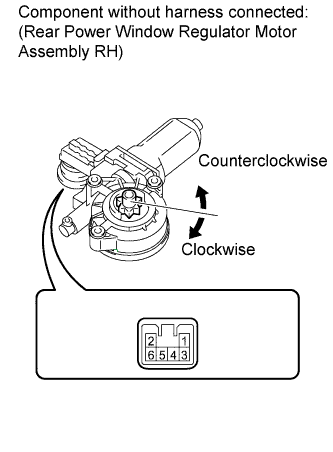

    1. A01630CE09

      Apply battery voltage to connector terminals 1 and 2.

      Note

      Do not apply battery voltage to any terminals except terminals 1 and 2.

    2. Check that the motor gear rotates smoothly as follows.

      OK
      Measurement Condition Specified Condition

      Battery positive (+) → 1

      Battery negative (-) → 2

      		 Motor gear rotates counterclockwise

      Battery positive (+) → 2

      Battery negative (-) → 1

      		 Motor gear rotates clockwise

      If the result is not as specified, replace the power window regulator motor assembly.
