REGISTER LIGHT INSPECTION


  1. INSPECT REGISTER LIGHT (for LH Side)

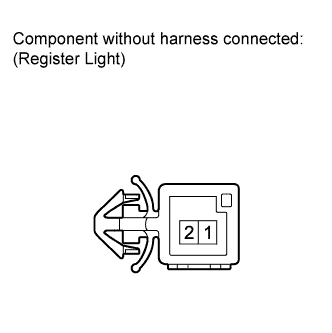

    1. A015ZUPE01

      Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead to terminal 1.

    2. Check that the register light comes on.

      OK
      Comes on

      If the result is not as specified, replace the register light.

  2. INSPECT REGISTER LIGHT (for RH Side)


    1. A015ZUPE01

      Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead to terminal 1.

    2. Check that the register light comes on.

      OK
      Comes on

      If the result is not as specified, replace the register light.

  3. INSPECT REGISTER LIGHT (for Center)


    1. A015ZUPE01

      Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead to terminal 1.

    2. Check that the register light comes on.

      OK
      Comes on

      If the result is not as specified, replace the register light.
