SHIFT LEVER REASSEMBLY


  1. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

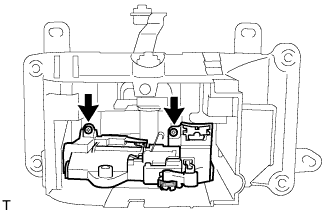

    1. A01614K

      Install the shift lock control ECU sub-assembly with the 2 screws.

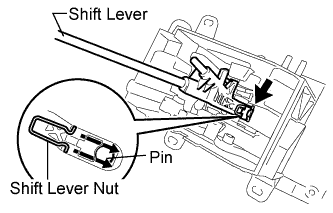

    2. A0161EYE02

      Install the shift lever with the pin and shift lever nut.

  2. INSTALL TRANSMISSION CONTROL SWITCH


    1. A016282E01

      Apply MP grease to the hatched area of the shift lever guide housing as indicated in the illustration.

    2. A0162PS

      Install the transmission control switch to the shift lever guide housing.

      Note

      Securely engage the claws.

    3. A01600M

      Install the shift lever guide housing with the shift lever lock pin and a new shift lever support.

      Note


      • Install the shift lever nut and lock pin after first engaging the 2 claws.

      • Securely engage the claws.

    4. A0162YW

      Connect the transmission control switch connector to the floor shift assembly.

  3. INSTALL SHIFT POSITION INDICATOR


    1. A0161ZH

      Install the shift position indicator to the console panel upper with the 4 screws.
