MULTI-MEDIA INTERFACE ECU (for LHD) REMOVAL


  1. REMOVE FRONT DOOR SCUFF PLATE

    Tech Tips

    Use the same procedure for the RH side and LH side Click here.

  2. REMOVE FRONT DOOR OPENING TRIM COVER

    Tech Tips

    Use the same procedure for the RH side and LH side Click here.

  3. REMOVE SIDE INSTRUMENT PANEL


    1. A01605Z

      Using a moulding remover, disengage the 5 claws and 3 clips to remove the side instrument panel RH as shown in the illustration.

  4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY


    1. A0161BZ

      Using a moulding remover, disengage the 4 clips as shown in the illustration and remove the No. 2 instrument panel under cover sub-assembly.

  5. REMOVE MULTI-MEDIA INTERFACE ECU WITH BRACKET


    1. Disconnect each connector.

    2. A0161VS

      Remove the 2 screws and multi-media interface ECU with bracket.

  6. REMOVE NO. 1 MULTI-MEDIA INTERFACE BRACKET

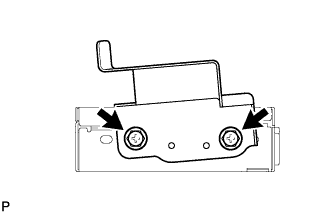

    1. A0160IE

      Remove the 2 screws and No. 1 multi-media interface bracket.

  7. REMOVE NO. 2 MULTI-MEDIA INTERFACE BRACKET

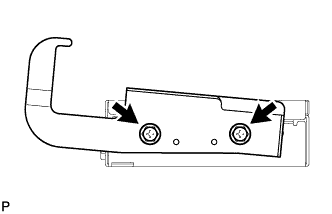

    1. A0161PT

      Remove the 2 screws and No. 2 multi-media interface bracket.

  8. REMOVE MULTI-MEDIA INTERFACE ECU
