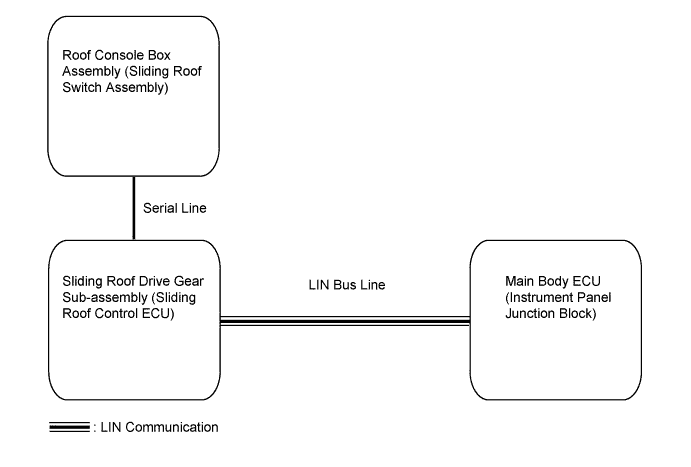

SLIDING ROOF SYSTEM SYSTEM DIAGRAM
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Main Body ECU | Sliding Roof Control ECU | Key-off sliding roof operation signal | LIN |
| Sliding Roof Control ECU | Main Body ECU | Warning buzzer signal | LIN |
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Main Body ECU | Sliding Roof Control ECU | Key-off sliding roof operation signal | LIN |
| Sliding Roof Control ECU | Main Body ECU | Warning buzzer signal | LIN |
