POWER BACK DOOR SYSTEM Jam Protection Function Activates During Power Back Door Operation

DESCRIPTION

When the jam protection function activates during power back door operation, one of the following may be the cause: 1) improper fit of back door, or a foreign object is stuck in the back door, 2) malfunctioning power back door touch sensor circuit, or 3) malfunctioning power back door ECU.

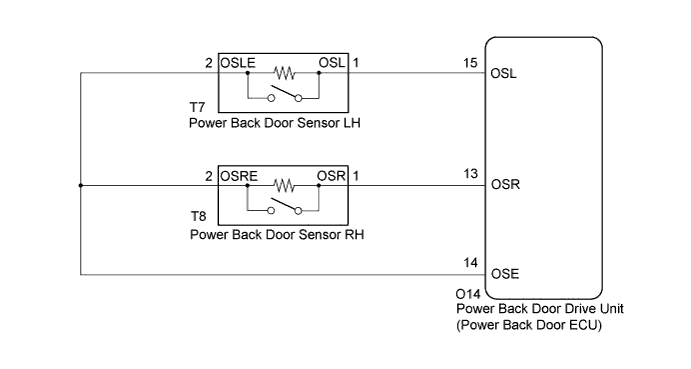

WIRING DIAGRAM

A017B3QE05

INSPECTION PROCEDURE

PROCEDURE


  1. CHECK BACK DOOR LOCK FUNCTION


    1. Check if there are any foreign objects interfering with the back door operation.

      OK
      There are no foreign objects.

    NG

    REMOVE FOREIGN OBJECT

    OK

  2. CHECK BACK DOOR


    1. Check the back door operation.


      1. Turn the door control main switch off.

      2. Open / close the back door by hand.

        OK
        The back door fully opens and closes smoothly.

    NG

    ADJUST BACK DOOR

    OK

  3. READ VALUE ON INTELLIGENT TESTER (POWER BACK DOOR TOUCH SENSOR)


    1. Check the Data List to determine if the power back door touch sensor functions properly.

      Back door (Power back door ECU)
      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      PBD Touch Sen L Power back door touch sensor LH signal / ON or OFF

      ON: Power back door touch sensor LH pressed

      OFF: Power back door touch sensor LH not pressed

      		 -
      PBD Touch Sen R Power back door touch sensor RH signal / ON or OFF

      ON: Power back door touch sensor RH pressed

      OFF: Power back door touch sensor RH not pressed

      		 -
      OK
      The power back door sensors function as specified in the normal condition.

    NG

    GO TO OTHER FLOW CHART Click here

    OK

    REPLACE POWER BACK DOOR DRIVE UNIT (POWER BACK DOOR ECU) Click here
