FRONT SEAT FRAME WITH ADJUSTER INSPECTION


  1. INSPECT FRONT SEAT FRAME WITH ADJUSTER (DRIVER SIDE)

    Tech Tips

    *1: RHD

    *2: LHD


    1. A017E6TE53

      Check operation of the seat frame (slide motor).


      1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.

        OK
        Measurement Condition Operational Direction

        Battery positive (+) → a2-1*1

        Battery positive (+) → b2-1*2

        Battery negative (-) → a2-2*1

        Battery negative (-) → b2-2*2

        		Forward

        Battery positive (+) → a2-2*1

        Battery positive (+) → b2-2*2

        Battery negative (-) → a2-1*1

        Battery negative (-) → b2-1*2

        		Backward

        If the result is not as specified, replace the seat frame with adjuster.

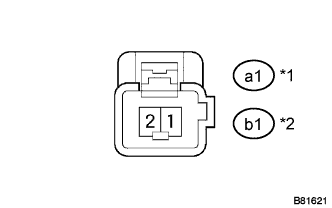

    2. A017E6TE54

      Check operation of the seat frame (front vertical motor).


      1. Check if the seat frame moves smoothly when the battery is connected to the front vertical motor connector terminals.

        OK
        Measurement Condition Operational Direction

        Battery positive (+) → a1-1*1

        Battery positive (+) → b1-1*2

        Battery negative (-) → a1-2*1

        Battery negative (-) → b1-2*2

        		Upward

        Battery positive (+) → a1-2*1

        Battery positive (+) → b1-2*2

        Battery negative (-) → a1-1*1

        Battery negative (-) → b1-1*2

        		Downward

        If the result is not as specified, replace the seat frame with adjuster.

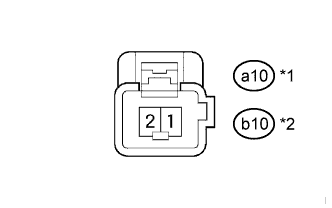

    3. A017E6TE55

      Check operation of the seat frame (reclining motor).


      1. Check if the seat frame moves smoothly when the battery is connected to the reclining motor connector terminals.

        OK
        Measurement Condition Operational Direction

        Battery positive (+) → a10-2*1

        Battery positive (+) → b10-2*2

        Battery negative (-) → a10-1*1

        Battery negative (-) → b10-1*2

        		Forward

        Battery positive (+) → a10-1*1

        Battery positive (+) → b10-1*2

        Battery negative (-) → a10-2*1

        Battery negative (-) → b10-2*2

        		Backward

        If the result is not as specified, replace the seat frame with adjuster.

    4. A017E6TE56

      Check operation of the seat frame (lifter motor).


      1. Check if the seat frame moves smoothly when the battery is connected to the lifter motor connector terminals.

        OK
        Measurement Condition Operational Direction

        Battery positive (+) → a3-2*1

        Battery positive (+) → b3-2*2

        Battery negative (-) → a3-1*1

        Battery negative (-) → b3-1*2

        		Upward

        Battery positive (+) → a3-1*1

        Battery positive (+) → b3-1*2

        Battery negative (-) → a3-2*1

        Battery negative (-) → b3-2*2

        		Downward

        If the result is not as specified, replace the seat frame with adjuster.

  2. INSPECT FRONT SEAT FRAME WITH ADJUSTER (PASSENGER SIDE)

    Tech Tips

    *1: RHD

    *2: LHD

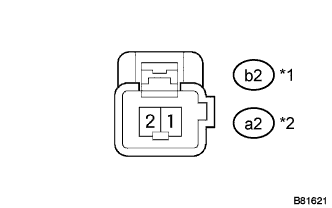

    1. A017E6TE57

      Check operation of the seat frame (slide motor).


      1. Check if the seat frame moves smoothly when the battery is connected to the slide motor connector terminals.

        OK
        Measurement Condition Operational Direction

        Battery positive (+) → b2-2*1

        Battery positive (+) → a2-2*2

        Battery negative (-) → b2-1*1

        Battery negative (-) → a2-1*2

        		Forward

        Battery positive (+) → b2-1*1

        Battery positive (+) → a2-1*2

        Battery negative (-) → b2-2*1

        Battery negative (-) → a2-2*2

        		Backward

        If the result is not as specified, replace the seat frame with adjuster.

    2. A017E6TE59

      Check operation of the seat frame (reclining motor).


      1. Check if the seat frame moves smoothly when the battery is connected to the reclining motor connector terminals.

        OK
        Measurement Condition Operational Direction

        Battery positive (+) → b10-2*1

        Battery positive (+) → a10-2*2

        Battery negative (-) → b10-1*1

        Battery negative (-) → a10-1*2

        		Forward

        Battery positive (+) → b10-1*1

        Battery positive (+) → a10-1*2

        Battery negative (-) → b10-2*1

        Battery negative (-) → a10-2*2

        		Backward

        If the result is not as specified, replace the seat frame with adjuster.
