OUTER REAR VIEW MIRROR INSPECTION

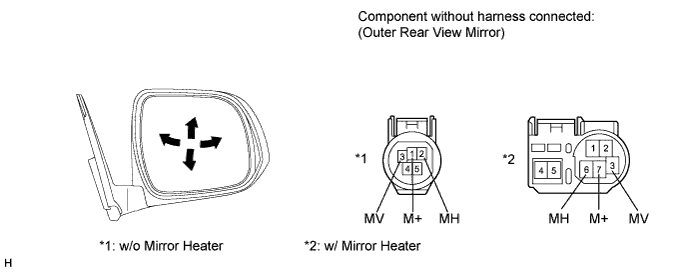

INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH

1.

   Disconnect the mirror connector.

2. Apply battery voltage and check the operation of the mirror.

   OK
   w/o Mirror Heater
   Measurement Condition Specified Condition Battery positive (+) → Terminal 3 (MV) Battery negative (-) → Terminal 1 (M+) Turns upward Battery positive (+) → Terminal 1 (M+) Battery negative (-) → Terminal 3 (MV) Turns downward Battery positive (+) → Terminal 2 (MH) Battery negative (-) → Terminal 1 (M+) Turns left Battery positive (+) → Terminal 1 (M+) Battery negative (-) → Terminal 2 (MH) Turns right
   w/ Mirror Heater
   Measurement Condition Specified Condition Battery positive (+) → Terminal 3 (MV) Battery negative (-) → Terminal 7 (M+) Turns upward Battery positive (+) → Terminal 7 (M+) Battery negative (-) → Terminal 3 (MV) Turns downward Battery positive (+) → Terminal 6 (MH) Battery negative (-) → Terminal 7 (M+) Turns left Battery positive (+) → Terminal 7 (M+) Battery negative (-) → Terminal 6 (MH) Turns right

   If the result is not as specified, replace the mirror assembly.

3.

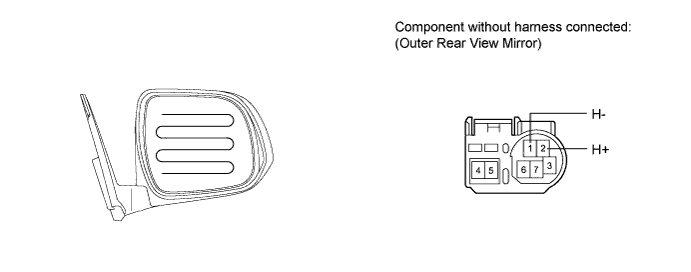

   w/ Mirror Heater:

   Check the resistance.




   1. Measure the resistance according to the value(s) in the table bellow.

      Standard resistance
      Tester Connection Condition Specified Condition 2 (H+) - 1 (H-) Always 3.8 to 4.8 Ω

      If the result is not as specified, replace the outer rear view mirror.

   2. Connect the cable from the positive battery (+) terminal to terminal 2 and the negative battery (-) terminal to terminal 1, then check that the mirror becomes warm.

      OK
      Mirror becomes warm.

      Tip:

      It takes a short time for the mirror to become warm.

      If the result is not as specified, replace the outer rear view mirror.

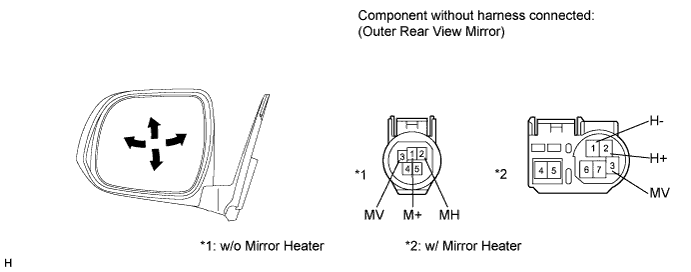

INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH

1.

   Disconnect the mirror connector.

2. Apply battery voltage and check the operation of the mirror.

   OK
   w/o Mirror Heater
   Measurement Condition Specified Condition Battery positive (+) → Terminal 3 (MV) Battery negative (-) → Terminal 1 (M+) Turns upward Battery positive (+) → Terminal 1 (M+) Battery negative (-) → Terminal 3 (MV) Turns downward Battery positive (+) → Terminal 2 (MH) Battery negative (-) → Terminal 1 (M+) Turns left Battery positive (+) → Terminal 1 (M+) Battery negative (-) → Terminal 2 (MH) Turns right
   w/ Mirror Heater
   Measurement Condition Specified Condition Battery positive (+) → Terminal 3 (MV) Battery negative (-) → Terminal 1 (M+) Turns upward Battery positive (+) → Terminal 1 (M+) Battery negative (-) → Terminal 3 (MV) Turns downward Battery positive (+) → Terminal 2 (MH) Battery negative (-) → Terminal 1 (M+) Turns left Battery positive (+) → Terminal 1 (M+) Battery negative (-) → Terminal 2 (MH) Turns right

   If the result is not as specified, replace the mirror assembly.

3.

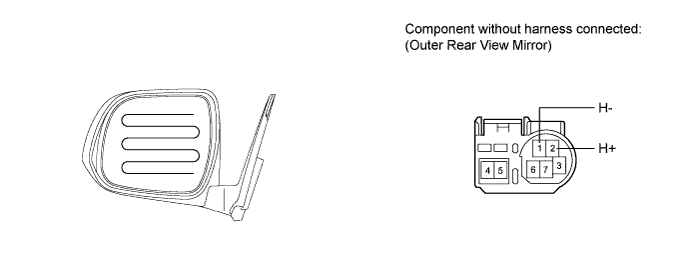

   w/ Mirror Heater:

   Check the resistance.




   1. Measure the resistance according to the value(s) in the table bellow.

      Standard resistance
      Tester Connection Condition Specified Condition 2 (H+) - 1 (H-) Always 3.8 to 4.8 Ω

      If the result is not as specified, replace the outer rear view mirror.

   2. Connect the cable from the positive battery (+) terminal to terminal 2 and the negative battery (-) terminal to terminal 1, then check that the mirror becomes warm.

      OK
      Mirror becomes warm.

      Tip:

      It takes a short time for the mirror to become warm.

      If the result is not as specified, replace the outer rear view mirror.
