INNER REAR VIEW MIRROR INSPECTION

Click here
Click here
  1. Click here

    REMOVE INNER REAR VIEW MIRROR ASSEMBLY (w/ Compass)

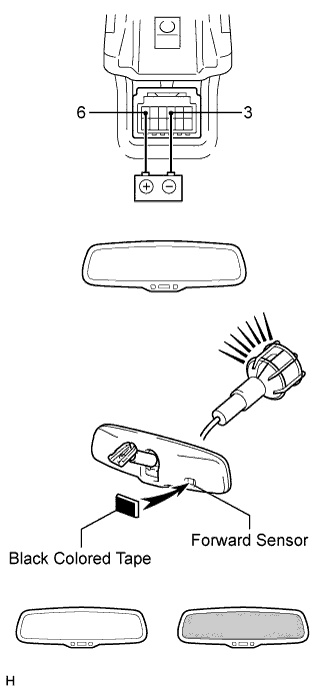

    1. A017CCLE01

      Inspect operation of the electrochromic inner mirror.


      1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 3.

      2. Attach black colored tape to the forward sensor to prevent it from sensing.

      3. Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.

        OK
        Mirror surface changes from bright to dark.

        If the result is not as specified, replace the mirror assembly.

  2. Click here

    INSPECT INNER REAR VIEW MIRROR ASSEMBLY (w/o Compass)

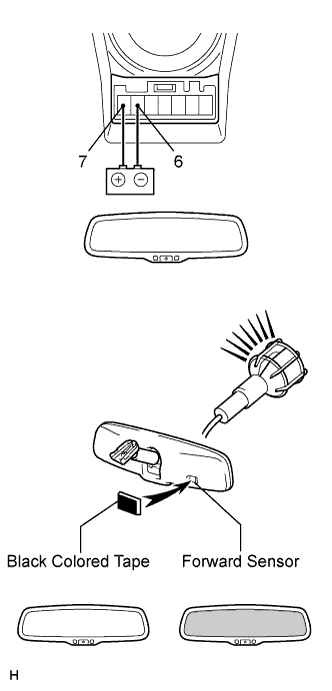

    1. A017FRIE02

      Inspect operation of the electrochromic inner mirror.


      1. Connect the positive (+) lead from the battery to terminal 7 and the negative (-) lead to terminal 6.

      2. Attach black colored tape to the forward sensor to prevent it from sensing.

      3. Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.

        OK
        Mirror surface changes from bright to dark.

        If the result is not as specified, replace the mirror assembly.
