SECURITY INDICATOR LIGHT ASSEMBLY INSPECTION


  1. INSPECT SECURITY INDICATOR LIGHT

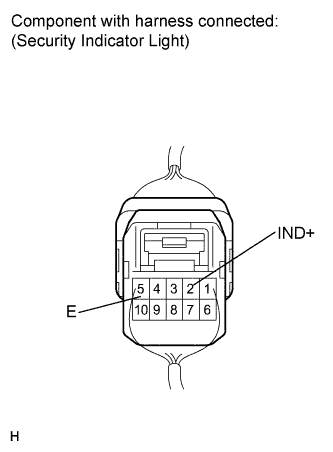

    1. A017DWCE06

      Disconnect the D36*1or D9*2ECU connector, with the E13 indicator connector connected.

    2. Apply battery voltage from the wire harness back side between the terminals of the indicator, and check the lighting condition of the security indicator.

      Standard
      Measurement Condition Specified Condition

      Battery positive (+) → Terminal E13-2 (IND+)

      Battery negative (-) → Terminal E13-5 (E)

      		 Security indicator comes on

      Tech Tips


      • *1: w/ Smart entry and start system

      • *2: w/o Smart entry and start system

      Note


      • If the positive (+) lead and the negative (-) lead are incorrectly connected, the security indicator will not come on.

      • Voltage of more than 12 V will damage the security indicator.

      • If the voltage is too low, the security indicator will not come on.

      If the result is not as specified, replace the passenger belt and airbag indicator.
