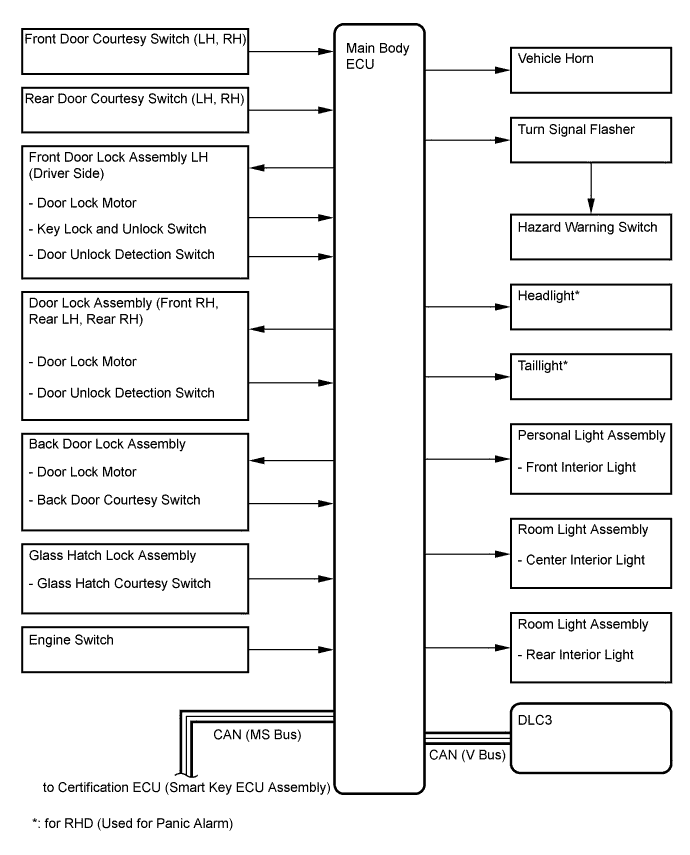

THEFT DETERRENT SYSTEM (w/ Smart Entry and Start System) SYSTEM DIAGRAM
| Transmitter ECU (Transmitter) | Receiving ECU (Receiver) | Signal | Line |
|---|---|---|---|
| Certification ECU (Smart key ECU assembly) | Main body ECU | Wireless door lock/unlock signal | CAN |
| Certification ECU (Smart key ECU assembly) | Main body ECU | Engine hood courtesy switch signal | CAN |
| Main body ECU | Certification ECU (Smart key ECU assembly) | Security indicator light signal | CAN |
| Certification ECU (Smart key ECU assembly) | Main body ECU | Security horn signal | CAN |
