CLEARANCE WARNING BUZZER (for Rear Side) REMOVAL


  1. PRECAUTION

    CAUTION:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  2. REMOVE COWL TOP VENTILATOR LOUVER RH

    A01GM4S

    1. Remove the 6 clips and cowl top ventilator louver RH.

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  4. REMOVE REAR SEAT OUTER BELT ASSEMBLY

    Click here

  5. REMOVE NO. 2 CLEARANCE WARNING BUZZER

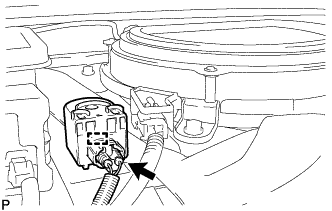

    1. A01GMAF

      Disconnect the connector.

    2. Detach the clamp and remove the No. 2 clearance warning buzzer.
