METER / GAUGE SYSTEM Operating Light Control Rheostat does not Change Light Brightness

DESCRIPTION

The No. 1 meter ECU receives signals for adjusting illumination on the meter of this circuit. The combination meter detects the illumination level selected by the user according to the switch operation.

Tech Tips

The meter illumination level can be adjusted by pushing the rheostat UP and DOWN switches.

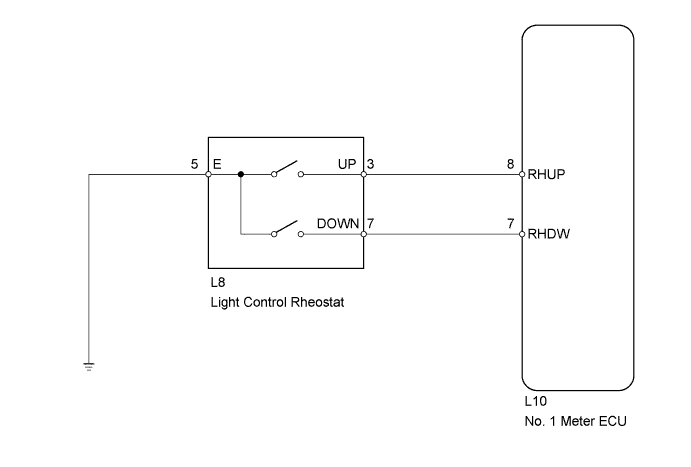

WIRING DIAGRAM

A01GLCBE01

INSPECTION PROCEDURE

PROCEDURE


  1. READ VALUE USING INTELLIGENT TESTER (LIGHT CONTROL RHEOSTAT)


    1. Operate the intelligent tester according to the display and select "Data List".

      Combination meter:
      Item Measurement Item / Range Normal Condition Diagnostic Note
      Light Control Up Switch Light control rheostat (UP) switch/ON or OFF

      ON: Light control rheostat (UP) switch pushed

      OFF: Light control rheostat (UP) switch not pushed

      		 -
      Light Control Down Switch Light control rheostat (DOWN) switch/ON or OFF

      ON: Light control rheostat (DOWN) switch pushed

      OFF: Light control rheostat (DOWN) switch not pushed

      		 -
      OK
      Switch condition (ON/OFF) can be switched by actual operation.

    NG

    INSPECT LIGHT CONTROL RHEOSTAT Click here

    OK

    REPLACE NO. 1 METER ECU

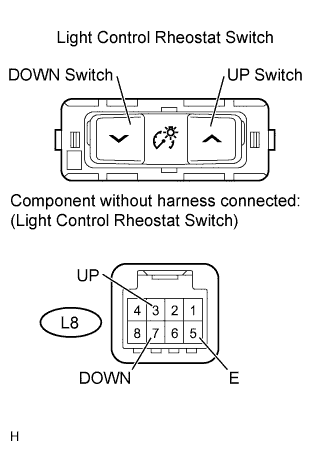

  2. INSPECT LIGHT CONTROL RHEOSTAT

    A01GN3XE03

    1. Remove the rheostat Click here.

    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance
      Tester Connection Switch Condition Specified Condition
      3 (UP) - 5 (E) UP switch is pushed Below 1 Ω
      UP switch is not pushed 10 kΩ or higher
      7 (DOWN) - 5 (E) DOWN switch pushed Below 1 Ω
      DOWN switch is not pushed 10 kΩ or higher

    NG

    REPLACE LIGHT CONTROL RHEOSTAT Click here

    OK

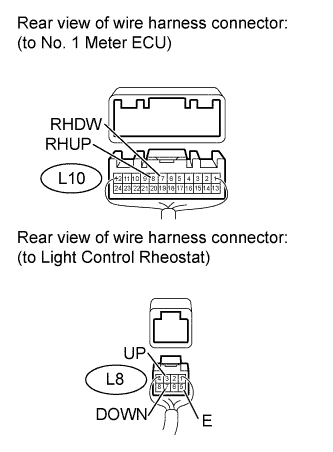

  3. CHECK HARNESS AND CONNECTOR (NO. 1 METER ECU - LIGHT CONTROL RHEOSTAT AND BODY GROUND)

    A01GK5NE04

    1. Disconnect the L10 meter connector.

    2. Disconnect the L8 rheostat connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance
      Tester Connection Condition Specified Condition
      L10-8 (RHUP) - L8-3 (UP) Always Below 1 Ω
      L10-7 (RHDW) - L8-7 (DOWN)
      L8-5 (E) - Body ground
      L10-8 (RHUP) or L8-3 (UP) - Body ground Always 10 kΩ or higher
      L10-7 (RHDW) or L8-7 (DOWN) - Body ground

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

    REPLACE NO. 1 METER ECU
