METER / GAUGE SYSTEM SYSTEM DESCRIPTION


  1. METER GAUGE AND WARNING/INDICATOR

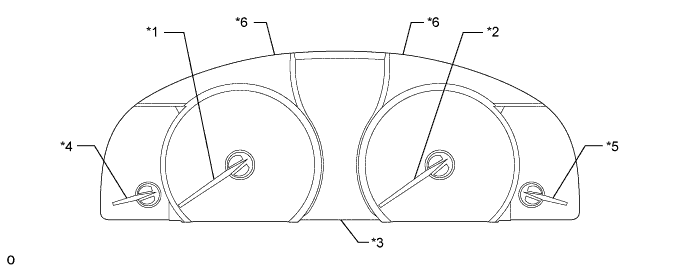

    A01GJP3E01
    Text in Illustration
    *1 Tachometer *2 Speedometer
    *3 Multi-information Display *4 Engine Coolant Temperature Receiver Gauge
    *5 Fuel Receiver Gauge *6 Eco/Sport light
    Meter/Gauge
    Item Details
    Tachometer The No. 1 meter ECU receives an engine speed signal from the ECM and the gauge needle operates (CAN).
    Speedometer Based on a signal received from the wheel speed sensors, the skid control ECU calculates the vehicle speed and transmits data to the No. 1 meter ECU (CAN).
    Engine coolant temperature gauge The No. 1 meter ECU receives an engine coolant temperature signal from the ECM and the gauge needle operates (CAN).
    Fuel receiver gauge The No. 1 meter ECU receives fuel amount information measured by the rear junction block ECU and the gauge needle operates (CAN).
    ODO/TRIP meter

    • The No. 1 meter ECU receives a vehicle speed pulse integration signal from the skid control ECU and the ODO/TRIP meter display operates (CAN).

    • The ODO/TRIP meter display changes when the ODO/TRIP switch is operated.
    Warning/Indicator
    Item Details
    Turn indicator light (LH/RH) Receives a turn signals from the Turn signal flasher relay (Direct line).
    Front fog indicator light Receives front fog indicator light signals from the main body ECU (CAN).
    Rear fog indicator light*1 Receives rear fog indicator light signals from the main body ECU (CAN).
    High beam indicator light Receives high beam indicator light signals from the main body ECU (CAN).
    Taillight indicator light Receives taillight indicator light signals from the main body ECU (CAN).
    Open door warning light Receives door open signals from the main body ECU (CAN).
    Front seat belt warning light Receives driver seat belt signals (unfastened) or passenger seat belt signals (unfastened) from the center airbag sensor (CAN).
    SRS warning light Receives malfunction signals from the center airbag sensor (CAN).
    Master warning light Receives warning signals from sensors and ECUs (CAN).
    MIL Receives malfunction signals from the ECM (Direct line).
    Charge warning light Receives malfunction signals from the front controller (CAN).
    EPS warning light Receives power steering warning signals from the power steering ECU (CAN).
    Brake warning light Receives brake fluid level warning signals or vehicle stability control malfunction signals from the skid control ECU (CAN).
    Parking brake warning light Receives parking brake signals from the electric parking brake ECU (CAN).
    Cruise control indicator light Receives a cruise control switch signals from the ECM (CAN).
    Radar cruise indicator light*3 Receives radar cruise indicator signals from the driving support ECU (CAN).
    SET indicator light Receives a cruise control switch signals from the ECM (CAN).
    Fuel level warning light Receives signals from the rear junction block ECU indicating low or no fuel (CAN).
    ABS warning light Receives malfunction signals from the skid control ECU (CAN).
    Slip indicator light Receives slip indicator signals from the skid control ECU (CAN).
    VSC OFF indicator light Receives VSC OFF indicator signals from the skid control ECU (CAN).
    PCS warning light*4 Receives a PCS warning signals from the driving support ECU (CAN).
    LKA indicator light*5 Receives a LKA indicator signals from the driving support ECU (CAN).
    Tire pressure warning light Receives a tire pressure warning signals from the tire pressure warning ECU (CAN).
    SNOW indicator light Receives a SNOW indicator signals from the TCM (CAN).
    HEIGHT HIGH indicator light*6 Receives a HEIGHT HIGH indicator signals from the suspension control ECU (CAN).
    Brake hold standby indicator light Receives a brake hold standby indicator signals from the skid control ECU (CAN).
    Brake hold operated indicator light Receives a brake hold operated indicator signals from the skid control ECU (CAN).
    Automatic high beam indicator light*7 Receives an automatic high beam indicator signals from the main body ECU (CAN).
    Adaptive high beam indicator light*2 Receives an adaptive high beam indicator signals from the headlight swivel ECU assembly (CAN).

    • *1: w/ Rear Fog Light

    • *2: w/ Adaptive High Beam System

    • *3: w/ Dynamic Radar Cruise Control System

    • *4: w/ Pre-crash Safety System

    • *5: w/ Lane-keeping Assist System

    • *6: w/ Air Suspension System

    • *7: w/ Automatic High Beam System
