HEIGHT CONTROL SENSOR REMOVAL

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.


  1. REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    A01GI6F

    1. Disconnect the connector.

    2. Remove the 3 bolts and front height control sensor sub-assembly LH.

  2. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

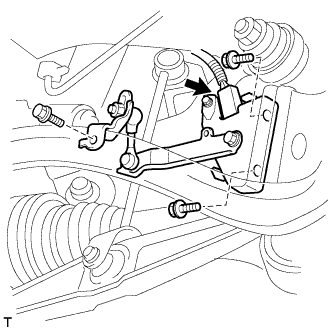

    A01GJAZ

    1. Disconnect the connector.

    2. Remove the 3 bolts and rear height control sensor sub-assembly LH.
