BACK DOOR COURTESY SWITCH INSTALLATION

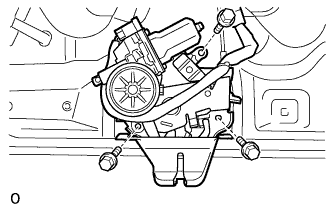

  1. INSTALL LUGGAGE DOOR CLOSER ASSEMBLY (BACK DOOR COURTESY SWITCH)

    A01GIJB

    1. Connect the connector.

    2. Install the luggage door closer assembly (back door courtesy switch) with the 3 bolts.

      Torque:
      5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

  2. INSTALL BACK DOOR TRIM COVER


    1. Attache the 10 clips to install the back door trim cover.

    2. Install the 4 clips.

  3. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER LH


    1. Install the luggage compartment door hinge cover LH with the 3 clips.

  4. INSTALL LUGGAGE COMPARTMENT DOOR HINGE COVER RH

    Tech Tips

    Use the same procedure described for the LH side.

  5. INSTALL REAR COMBINATION LIGHT SERVICE COVER LH


    1. Attach the 3 claws to install the rear combination light service cover LH.

  6. INSTALL REAR COMBINATION LIGHT SERVICE COVER RH

    Tech Tips

    Use the same procedure described for the LH side.

  7. INSTALL NO. 2 COURTESY LIGHT ASSEMBLY


    1. Connect the connector.

    2. Attach the 2 claws to install the No. 2 courtesy light assembly.

  8. INSTALL SWITCH BEZEL


    1. Attach the 2 claws to install the switch bezel.

  9. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP


    1. Install the luggage compartment door assist grip with the 2 screws.

    2. A01GMO6E02

      Attach the 3 claws.
