BACK DOOR COURTESY SWITCH INSPECTION


  1. INSPECT LUGGAGE DOOR CLOSER ASSEMBLY (BACK DOOR COURTESY SWITCH)

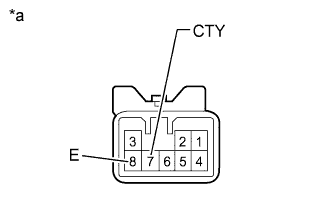

    A01GM2YE08
    Text in Illustration
    *a

    Component without harness connected

    {Luggage Door Closer Assembly (back door courtesy switch)}

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      7 (CTY) - 8 (E) UNLOCK Below 1 Ω
      7 (CTY) - 8 (E) LOCK 10 kΩ or higher

      • If the result is not as specified, replace the luggage door closer assembly (back door courtesy switch).

        Text in Illustration
        *a

        Component without harness connected

        {Luggage Door Closer Assembly (back door courtesy switch)}
