REAR DOOR COURTESY SWITCH INSPECTION

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.


  1. INSPECT REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY

    A01GJN5E29

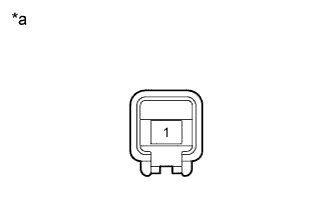

    Text in Illustration
    *a

    Component without harness connected

    (Rear Door Courtesy Light Switch Assembly)

    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      1 - Body ground Pin not pushed Below 1 Ω
      1 - Body ground Pin pushed 10 kΩ or higher

      • If the result is not as specified, replace the rear door courtesy light switch assembly.

        Text in Illustration
        *a

        Component without harness connected

        (Rear Door Courtesy Light Switch Assembly)
