FRONT DOOR COURTESY SWITCH REMOVAL

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

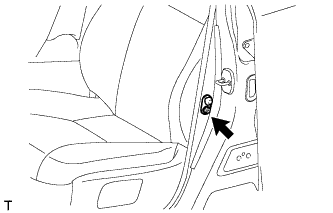

  1. REMOVE FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

    A01GN29

    1. Using a T30 "TORX" socket wrench, remove the screw.

    2. Disconnect the connector to remove the front door courtesy light switch assembly.
