HEADLIGHT DIMMER SWITCH INSPECTION

INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY

1. Check the light control switch.



   1.

      Text in Illustration

      *a	Component without harness connected (Headlight Dimmer Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

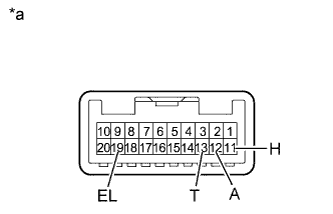

      Tester Connection Switch Condition Specified Condition 11 (H) - 12 (A) - 13 (T) - 19 (EL) Light control switch OFF 10 kΩ or higher 13 (T) - 19 (EL) Light control switch TAIL Below 1 Ω 11 (H) - 13 (T) - 19 (EL) Light control switch HEAD Below 1 Ω 12 (A) - 19 (EL) Light control switch AUTO Below 1 Ω




      • If the result is not as specified, replace the headlight dimmer switch assembly.

        Text in Illustration

        *a	Component without harness connected (Headlight Dimmer Switch Assembly)

2. Check the headlight dimmer switch.



   1.

      Text in Illustration

      *a	Component without harness connected (Headlight Dimmer Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

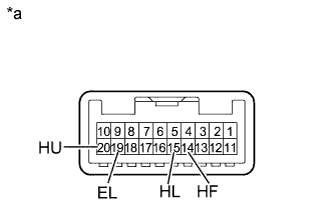

      Tester Connection Switch Condition Specified Condition 14 (HF) - 19 (EL) Headlight dimmer switch FLASH Below 1 Ω 15 (HL) - 19 (EL) Headlight dimmer switch LOW BEAM Below 1 Ω 19 (EL) -20 (HU) Headlight dimmer switch HIGH BEAM Below 1 Ω




      • If the result is not as specified, replace the headlight dimmer switch assembly.

      Tech Tips

      Perform the "LOW BEAM" and "HIGH BEAM" inspection with the light control switch on "HEAD".

3. Check the turn signal switch.



   1.

      Text in Illustration

      *a	Component without harness connected (Headlight Dimmer Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

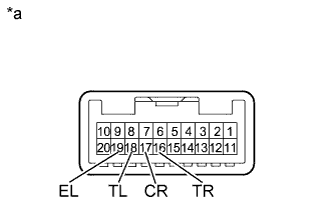

      Tester Connection Switch Condition Specified Condition 16 (TR) - 17 (CR) - 19 (EL) Turn signal switch right turn Below 1 Ω 16 (TR) - 19 (EL) Turn signal switch right lane change Below 1 Ω 16 (TR) - 17 (CR) - 18 (TL) - 19 (EL) Turn signal switch neutral 10 kΩ or higher 18 (TL) - 19 (EL) Turn signal switch left lane change Below 1 Ω 17 (CR) - 18 (TL) - 19 (EL) Turn signal switch left turn Below 1 Ω




      • If the result is not as specified, replace the headlight dimmer switch assembly.

        Text in Illustration

        *a	Component without harness connected (Headlight Dimmer Switch Assembly)

4. Check fog light switch.



   1.

      Text in Illustration

      *a	Component without harness connected (Headlight Dimmer Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

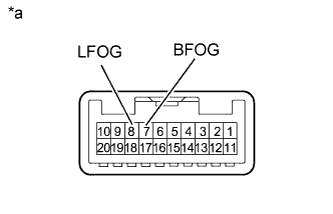

      Tester Connection Switch Condition Specified Condition 7 (BFOG) - 8 (LFOG) Front fog light switch OFF 10 kΩ or higher 7 (BFOG) - 8 (LFOG) Front fog light switch ON Below 1 Ω




      • If the result is not as specified, replace the headlight dimmer switch assembly.

        Text in Illustration

        *a	Component without harness connected (Headlight Dimmer Switch Assembly)

5. Check rear fog light switch.



   1.

      Text in Illustration

      *a	Component without harness connected (Headlight Dimmer Switch Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

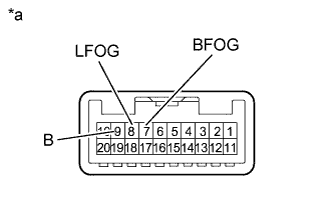

      Tester Connection Switch Condition Specified Condition 7 (BFOG) - 8 (LFOG) -9 (B) Rear fog light switch OFF 10 kΩ or higher 7 (BFOG) - 8 (LFOG) -9 (B) Rear fog light switch ON Below 1 Ω




      • If the result is not as specified, replace the headlight dimmer switch assembly.

        Text in Illustration

        *a	Component without harness connected (Headlight Dimmer Switch Assembly)
