CONSOLE BOX LIGHT (for Rear) REMOVAL


  1. REMOVE REAR SEAT CONSOLE BOX ASSEMBLY


    1. A01GLZ1

      Using a screwdriver, detach the 4 clips and remove the rear seat console box front panel.

      Tech Tips

      Tape the screwdriver tip before use.

    2. A01GK02

      Remove the 6 bolts, and move the rear seat console box assembly in the direction of the arrow shown in the illustration. Then detach the 2 clips, and remove it.

    3. A01GKJU

      Disconnect the connector.

  2. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

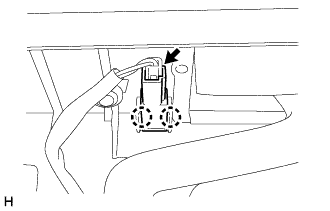

    A01GL19

    1. Disconnect the connector.

    2. Detach the 2 claws to remove the No. 1 interior illumination light assembly.
