VANITY LIGHT (for Rear) REMOVAL

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.


  1. REMOVE REAR VANITY LIGHT ASSEMBLY

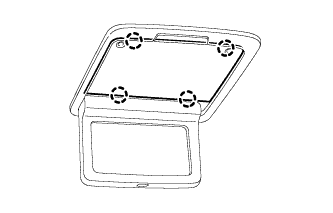

    A01GHWZ

    1. Using a screwdriver, detach the 4 claws and remove the rear vanity light lens.

      Tech Tips

      Tape the screwdriver tip before use.

    2. A01GMZR

      Remove the 2 screws.

    3. Disconnect the connector and remove the rear vanity light assembly.
