VANITY LIGHT (for Front) REMOVAL

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.


  1. REMOVE VANITY LIGHT ASSEMBLY

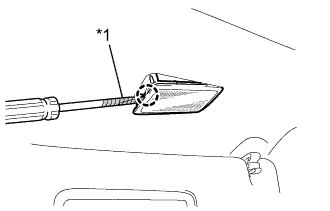

    A01GJQJE01

    1. Using a screwdriver, detach the claw.

      Tech Tips

      Tape the screwdriver tip before use.

      Text in Illustration
      *1 Protective Tape

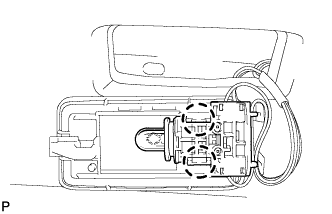

    2. A01GHVX

      Detach the 2 claws to remove the vanity light assembly.

  2. REMOVE VANITY LIGHT BULB


    1. Remove the vanity light bulb from the vanity light bulb holder.

  3. REMOVE VISOR BRACKET COVER

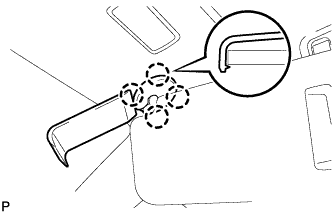

    A01GJ6Q

    1. Using a moulding remover, detach the 4 claws to remove the visor bracket cover.

  4. REMOVE VISOR ASSEMBLY LH

    A01GMMD

    1. Remove the 2 screws and visor assembly LH.
