FOG LIGHT ASSEMBLY (except Sport Package) REMOVAL

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.


  1. REMOVE FRONT BUMPER COVER

    Click here

  2. REMOVE FOG LIGHT ASSEMBLY LH

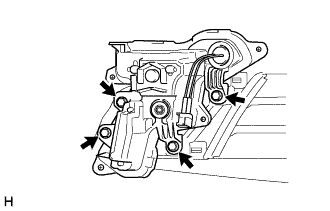

    A01GHQA

    1. Remove the 4 bolts and fog light assembly LH.
