HIGH INTENSITY DISCHARGE HEADLIGHT BULB REMOVAL

Tech Tips


  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.


  1. REMOVE COWL TOP VENTILATOR LOUVER RH


    1. A01GM4S

      Remove the 6 clips and cowl top ventilator louver RH.

  2. PRECAUTION

    Note

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work Click here.

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

  4. REMOVE FRONT WHEEL

  5. REMOVE FRONT FENDER WHEEL OPENING MOULDING LH

    A01GJAY

    1. Remove the 5 screws.

    2. Detach the clip and remove the moulding.

  6. REMOVE HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY

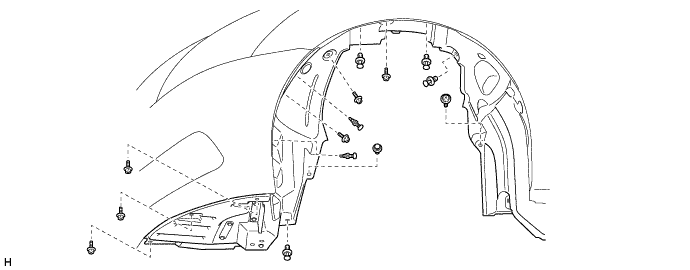

    1. Remove the 7 screws, 5 clips and 2 pin hold clips.

      A01GMBD

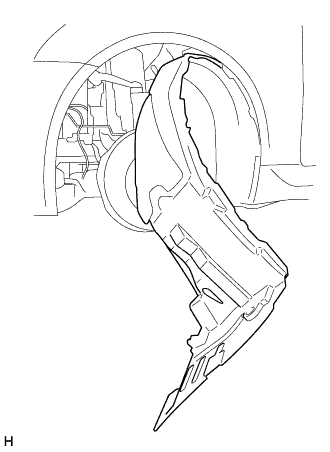

    2. A01GHT1

      Bend the front fender liner LH as shown in the illustration.

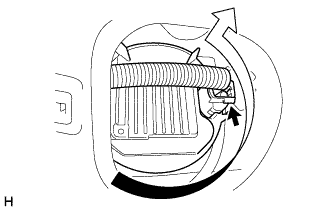

    3. A01GMRZ

      Disconnect the connector.

    4. Turn the headlight light control ECU sub-assembly in the direction indicated by the arrow in the illustration and separate the headlight light control ECU sub-assembly from the headlight unit.

      Note


      • Do not apply excessive force using a tool.

      • Do not damage the headlight gasket or allow it to become contaminated with foreign matter. If the headlight gasket is damaged or contaminated, water may get into the headlight assembly, resulting in a malfunction of the headlight light control ECU sub-assembly.

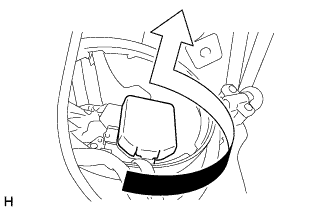

    5. A01GLEU

      Turn the headlight light control ECU sub-assembly socket in the direction indicated by the arrow in the illustration and disconnect the headlight light control ECU sub-assembly socket to remove the headlight light control ECU sub-assembly.

      Note

      Do not pull the headlight light control ECU sub-assembly with the socket connected.

  7. REMOVE HEADLIGHT GASKET

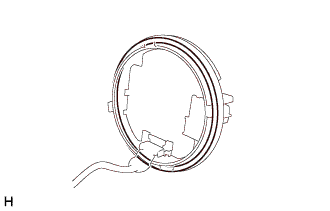

    A01GKVA

    1. Remove the headlight gasket from the headlight light control ECU sub-assembly.

  8. REMOVE DISCHARGE HEADLIGHT BULB

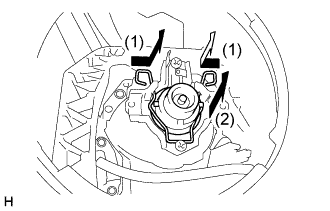

    A01GLOME01

    1. Release the set spring lock in the order shown in the illustration and remove the discharge headlight bulb.

      Note

      Do not touch the discharge headlight bulb glass.
