AIR SUSPENSION SYSTEM, Diagnostic DTC:C1762

DTC Code DTC Name
C1762 Continuous Electric Current to Exhaust Solenoid

DESCRIPTION

DTC No. Detection Condition Trouble Area
C1762/62 With the exhaust valve activated, the vehicle does not go down to the standard vehicle height after 6 minutes have elapsed.

  • Air tube

  • No. 1 height control valve

  • No. 2 height control valve

  • Height control compressor

WIRING DIAGRAM

A01GJCPE01

INSPECTION PROCEDURE

Note


  • Before performing troubleshooting, inspect the connectors of related circuits.

  • Before replacing the suspension control ECU, perform all of the following again: 1) symptom simulation Click here; 2) DTC inspection; and 3) intelligent tester inspection (ECU Data List or Active Test). If no malfunctions are found in other areas, replace the suspension control ECU.

  • If the suspension control ECU or height control sensor is replaced, the vehicle height offset calibration must be performed Click here.

PROCEDURE


  1. CHECK AIR TUBE


    1. Check if any of the air tubes are clogged.

      OK
      No clogs.

    NG

    REPAIR OR REPLACE AIR TUBE

    OK

  2. INSPECT IF NO. 1 HEIGHT CONTROL VALVE IS STUCK


    1. Remove the No. 1 height control valve Click here.

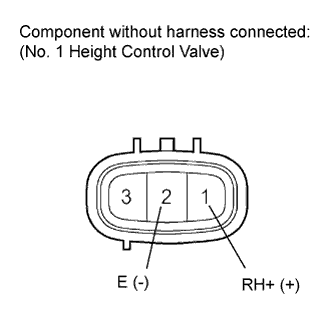

    2. A01GIVNE38

      Check the No. 1 height control valve RH valve.


      1. Connect terminal 1 (RH+) to the battery positive (+) terminal, and terminal 2 (E) to the battery negative (-) terminal.

      2. Check the operating sound of the height control valve.

        OK
        It makes an operating sound (click).

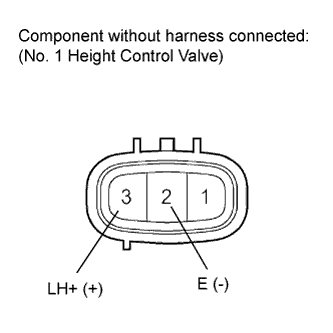

    3. A01GIVNE39

      Check the No. 1 height control valve LH valve.


      1. Connect terminal 3 (LH+) to the battery positive (+) terminal, and terminal 2 (E) to the battery negative (-) terminal.

      2. Check the operating sound of the height control valve.

        OK
        It makes an operating sound (click).

    NG

    REPLACE NO. 1 HEIGHT CONTROL VALVE Click here

    OK

  3. INSPECT IF NO. 2 HEIGHT CONTROL VALVE IS STUCK


    1. Remove the No. 2 height control valve Click here.

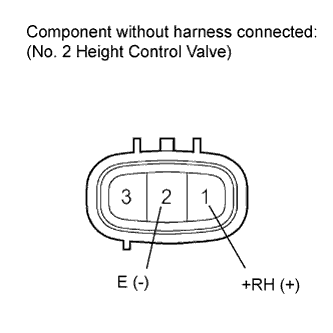

    2. A01GIVNE40

      Check the No. 2 height control valve RH valve.


      1. Connect terminal 1 (RH+) to the battery positive (+) terminal, and terminal 2 (E) to the battery negative (-) terminal.

      2. Check the operating sound of the height control valve.

        OK
        It makes an operating sound (click).
    3. A01GIVNE41

      Check the No. 2 height control valve LH valve.


      1. Connect terminal 3 (LH+) to the battery positive (+) terminal, and terminal 2 (E) to the battery negative (-) terminal.

      2. Check the operating sound of the height control valve.

        OK
        It makes an operating sound (click).

    NG

    REPLACE NO. 2 HEIGHT CONTROL VALVE Click here

    OK

  4. INSPECT IF HEIGHT CONTROL COMPRESSOR EXHAUST VALVE IS STUCK


    1. Remove the height control compressor Click here.

    2. A01GK37E02

      Inspect if exhaust valve is stuck:


      1. Connect terminal 1 (B) to the battery positive (+) terminal, and terminal 2 (L) to the battery negative (-) terminal.

      2. Check the operating sound of the height control valve.

        OK
        It makes an operating sound (click).
        Result
        Result Proceed to
        NG A
        OK (for LHD) B
        OK (for RHD) C

    B

    REPLACE SUSPENSION CONTROL ECU (for LHD) Click here

    C

    REPLACE SUSPENSION CONTROL ECU (for RHD) Click here

    A

    REPLACE HEIGHT CONTROL COMPRESSOR Click here
